Hyundai Elantra: Clutch System / Clutch Master Cylinder

Components and components location

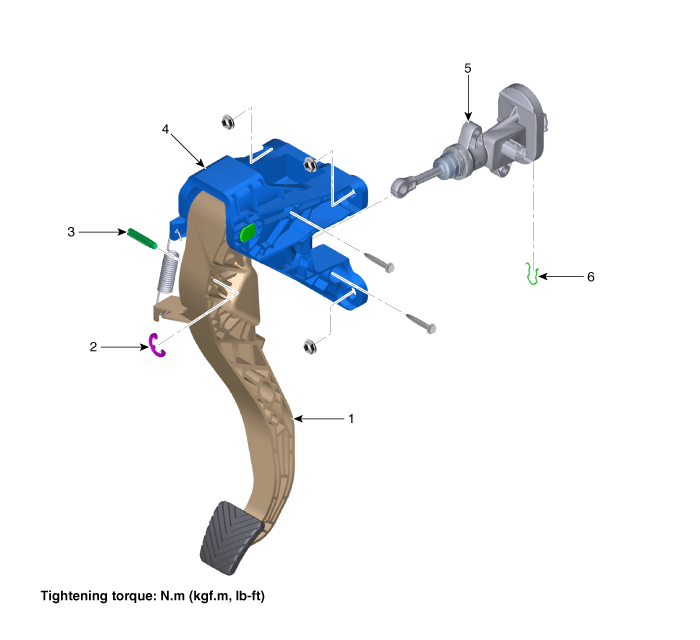

Components

1. Clutch pedal arm
2. Clip
3. Push rod pin
4. Clutch pedal assembly
5. Clutch master cylinder
6. Clip

Repair procedures
Removal
1.
Remove the clutch pedal.
(Refer to Clutch System - "Clutch Pedal")
2.

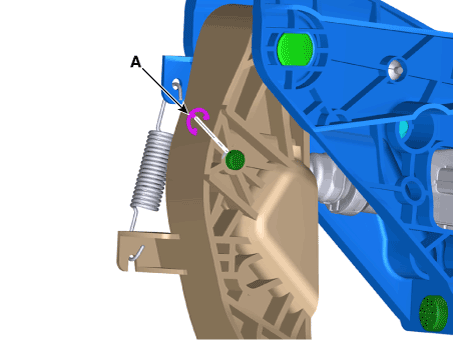

Remove the clip (A).

3.

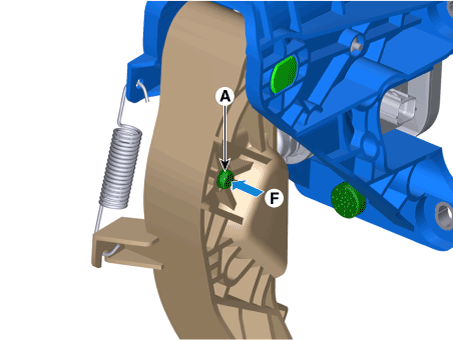

Remove the push rod pin (A) by pushing it in the “F” direction.

4.

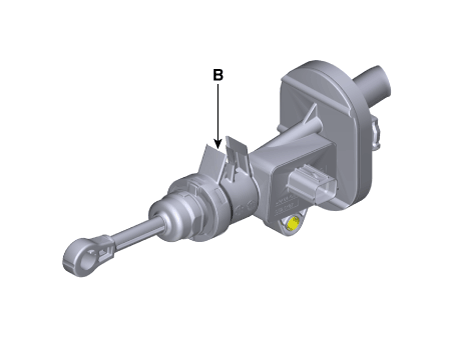

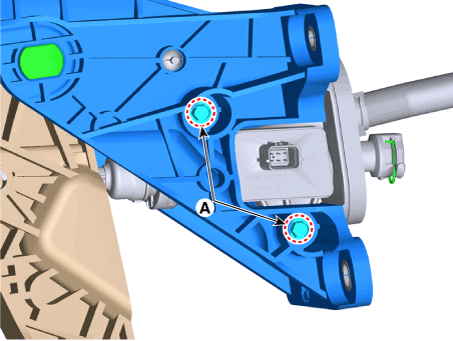

Loosen the bolts (A) and then removing the clutch master cylinder (B).

Installation
1.
To install, reverse the removal procedures.
2.
Perform bleeding air procedure in concecntric slave cylinder after pouring the brake fluid.
(Refer to Clutch System - "Concentric Slave Cylinder Assembly")

    Clutch Tube

    Components and components location Components and Components Location[Gasoline 1.6 MPI / Gasoline 2.0 MPI]1. Clutch pedal arm2. Clutch pedal assembly3...

    Concentric Slave Cylinder Assembly

    Repair procedures Removal1.Remove the manual transaxle assembly. (Refer to Manual Transaxle System - "Manual Transaxle")2.Loosen the bolts and then removing the concentric slave cylinder assembly (A) from the clutch housing...
