Hyundai Elantra: Blower / Climate Control Air Filter

Description and operation
Description
The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.
Repair procedures
Replacement
1.
Remove the glove box.
(Refer to Body (Interior and Exterior) - "Glove Box")
2.

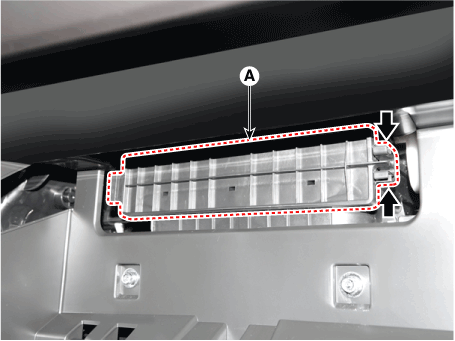

Remove the filter cover (A) by pressing the knob.

3.

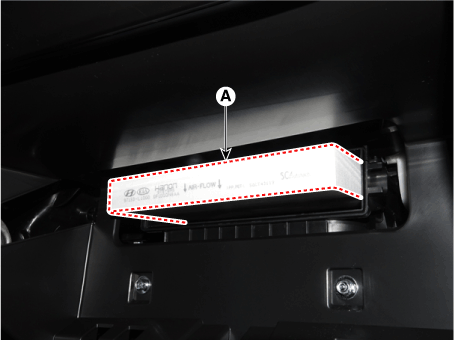

Replace the air filter (A) with a new one according to the direction of air filter.

4.
To install, reverse the removal procedure.
