Hyundai Elantra: Front Door / Front Door Inside Handle

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures
Removal
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

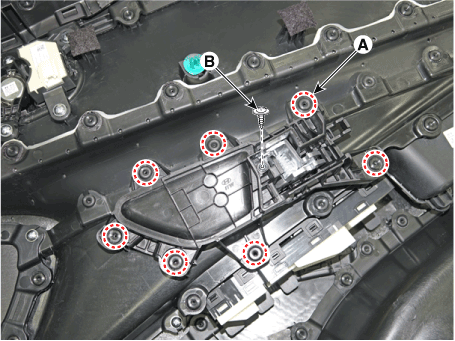

Cut the heat-welded part with a knife and loosen the mounting screw (B).
3.

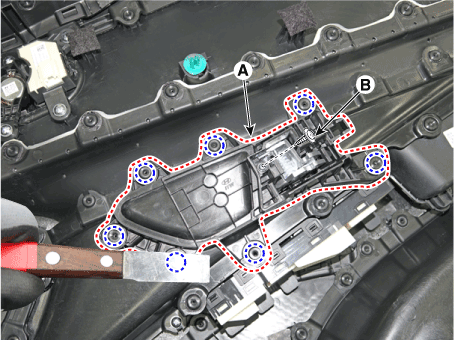

Remove the front door inside handle (A).


•
Be careful of breakage and cut the heat-welded part with a knife.
Installation
1.
Install the front door inside handle.
2.

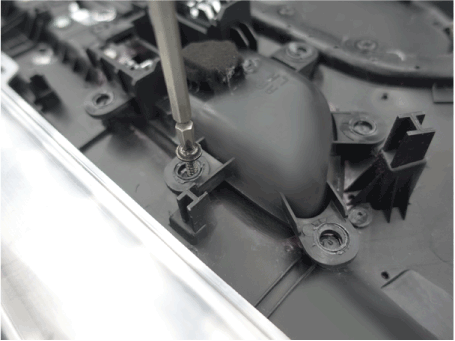

A screw is attached to the cut heat-welded portion.

•
Because there is no groove to attach the screw to the heat weld, install the screwdriver in a straight line.


•
Front door inside handle mounting screw
(A) : M5, 8mm (7ea)
(B) : Existing screw (M3, 1ea)
