Hyundai Elantra: Immobilizer System / Antenna Coil

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Immobilizer System / Antenna Coil

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
4.

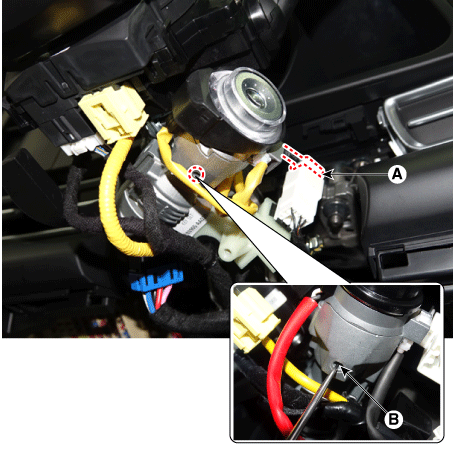

Disconnect the immobilizer connector (A) and press the locking pin (B) using an awl.
5.
Loosen the mounting screws and remove the antenna coil.

Installation
1.
Install the antenna coil.
2.
Connect the antenna coil connector.
3.
Install the crash pad lower panel.
4.
Connect the negative (-) battery terminal.

    Immobilizer Control Unit

    C..

    Ignition Switch Assembly

    ..
