Hyundai Elantra: Sunroof / Sunroof open warning

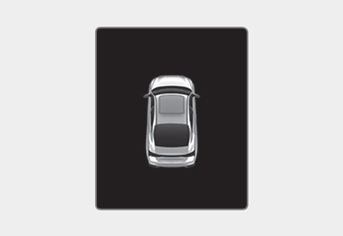

• If the driver removes the ignition key(smart key : turns off the engine) when the sunroof is not fully closed, the warning chime will sound for a few seconds and a warning image will appear in the LCD window. Close the sunroof securely when leaving your vehicle.
