Hyundai Elantra: Seat Electrical / Seat Heater Switch
Components and components location

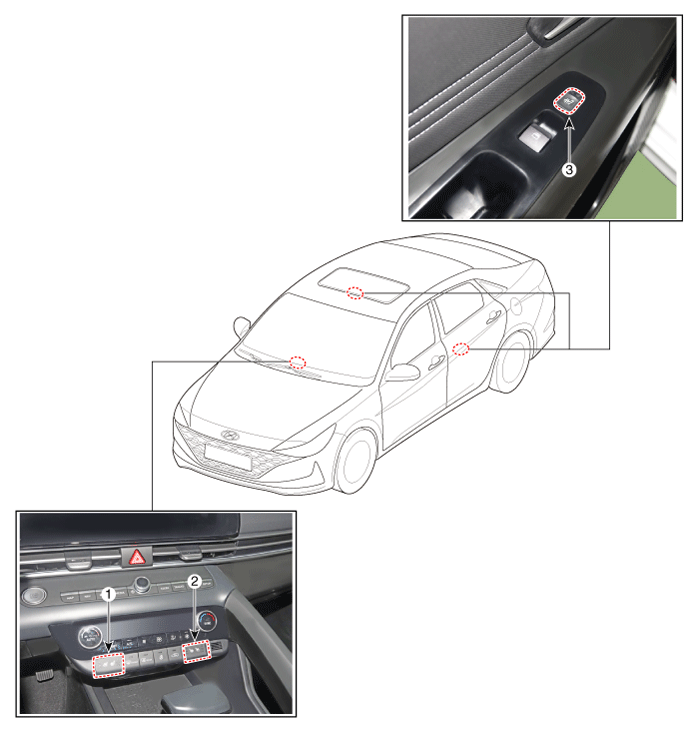

1. Driver seat heater switch 2. Passenger seat heater swtich
| 3. 2nd seat heater switch
|
|
|
Schematic diagrams
Manual Seat Heater Switch
Connector Pin Information

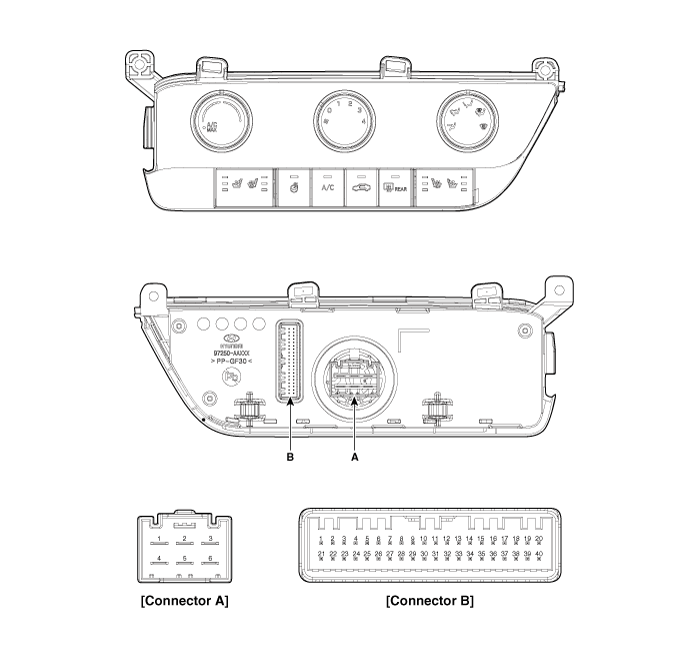

[Connector A]
Pin No
|
Function
|
Pin No
|
Function
|
1
| Low (Register specifications)
| 4
| Middle Low (Register specifications)
|
2
| Common (Register specifications)
| 5
| Middle High (Register specifications)
|
3
| Ground (Register specifications)
| 6
| High (Register specifications)
|
[Connector B]
Pin No
|
Function
|
Pin No
|
Function
|
1
| Battery (+)
| 21
| IGN2
|
2
| ISG B+
| 22
| IGN1
|
3
| ILL+ (TAIL)
| 23
| Blower IS (PWM specifications)
|
4
| Sensor REF (+5V)
| 24
| -
|
5
| Mode control actuator (Feedback)
| 25
| -
|
6
| Temperature control actuator (Feedback)
| 26
| -
|
7
| Intake actuator (Feedback)
| 27
| Blower Max. On signal (Register specifications)
|
8
| EVAP sensor (+)
| 28
| -
|
9
| AMB sensor (+)
| 29
| PTC relay
|
10
| Mode control actuator (Vent)
| 30
| -
|
11
| Mode control actuator (DEF)
| 31
| -
|
12
| Temperature control actuator (Cool)
| 32
| -
|
13
| Temperature control actuator (Warm)
| 33
| P_CAN High
|
14
| Intake actuator (FRE)
| 34
| P_CAN Low
|
15
| Intake actuator (REC)
| 35
| Blower INH (PWM specifications)
|
16
| HDT
| 36
| Blower PWM (In) (PWM specifications)
|
17
| -
| 37
| ECV (+)
|
18
| -
| 38
| ECV (-)
|
19
| Blower signal (On) (Register specifications)
| 39
| Sensor ground
|
20
| ILL- (RHEO)
| 40
| Ground
|
DATC Seat Heater Switch

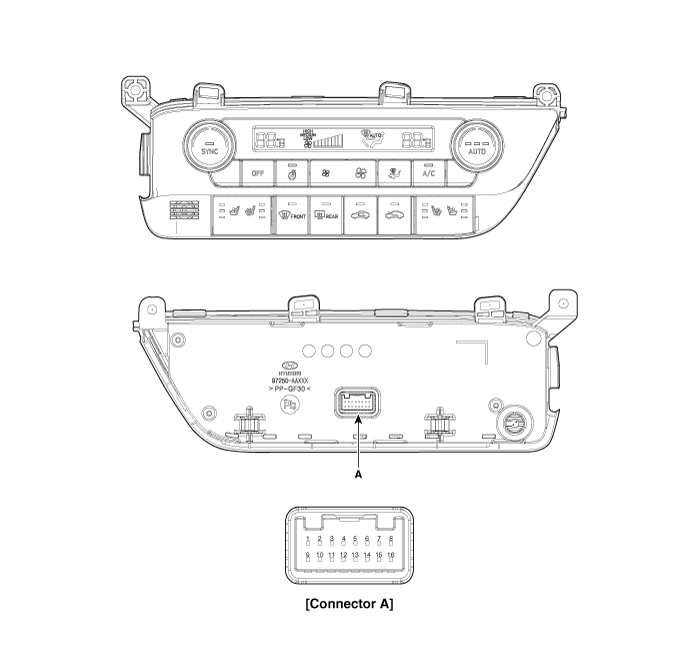

[Connector A]
Pin No
|
Function
|
Pin No
|
Function
|
1
| Battery
| 9
| IGN2
|
2
| ILL+ (TAIL)
| 10
| ISG Battery (+)
|
3
| -
| 11
| IGN1
|
4
| LIN BUS
| 12
| HTD
|
5
| -
| 13
| -
|
6
| -
| 14
| -
|
7
| -
| 15
| -
|
8
| RHEO (ILL-)
| 16
| Ground
|

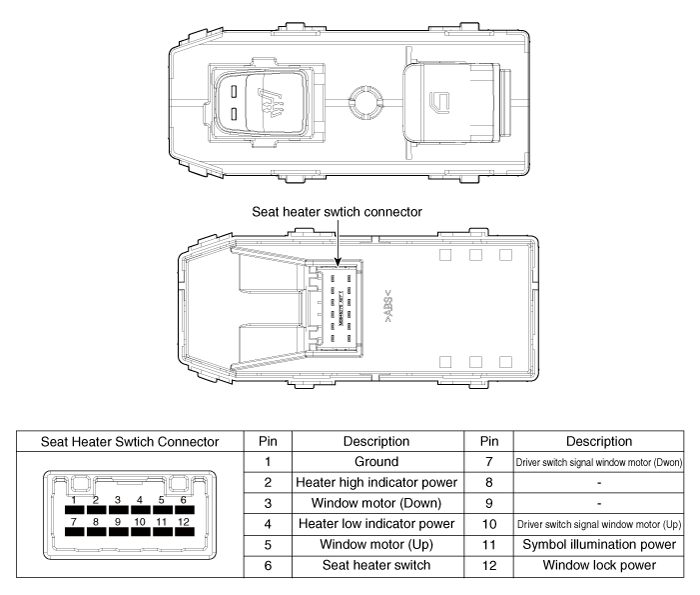

[Rear Seat]
Repair procedures
[Manual Seat Heater Switch]
1. | Disconnect the negative (-) battery terminal. |
2. | Remove heater & A/C control unt. (Refer to Heating, Ventilation and Air Conditioning - "Heater & A/C Control Unit (Manual") |
[DATC Seat Heater Switch]
1. | Disconnect the negative (-) battery terminal. |
2. | Remove heater & A/C control unt. (Refer to Heating, Ventilation and Air Conditioning - "Heater & A/C Control Unit (DATC") |
[Rear Seat]
1. | Disconnect the negative (-) battery terminal. |
2. | Remove the rear door window switch. (Refer to Power Windows - "Power Window Switch") |
1. | Install the heater & A/C control unt. |
2. | Connect the negative (-) battery terminal. |
[Rear Seat Heater Switch]
1. | Install the rear door window switch. |
2. | Connect the negative (-) battery terminal. |
