Hyundai Elantra: Auto Lighting Control System / Schematic diagrams

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Auto Lighting Control System / Schematic diagrams

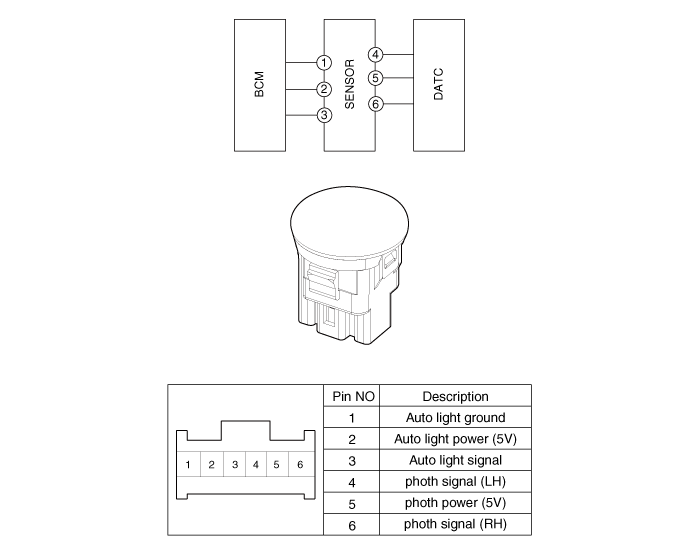

Circuit Diagram

Specifications

Specifications Items Specifications Rated voltage5VLoadMax. 1mA (Relay load)Illuminations (LUX)1000...

Repair procedures InspectionCheck if the auto light control operates like a timing chart shown below. Tail lamp output and head lamp (Low) output is controlled based on the auto light sensor's input (illumination intensity) when the Auto Light Switch in Multi-Function Switch is turned ON, and the vehicle is in IGN1 or IGN2 ON Mode...
