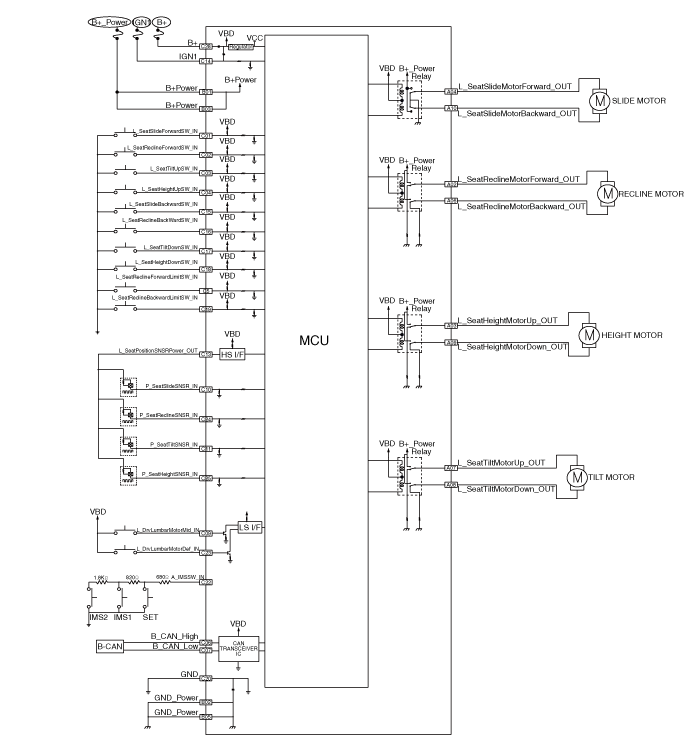

Hyundai Elantra: IMS(Integrated Memory System) / Schematic diagrams

Components

    Specifications

    Specifications[Memory Power Seat Unit ] Item Specifications Rated voltageDC 12VOperating VoltageDC 9V - 16VOperating Temperature Range-30°C to 75°C Dark currentMax...

    Memory power seat unit

    Components and components location ComponentsConnector Pin Information Pin no Connector A Connector B Connector C 1-B (+)Slide switch signal (Forward)2Reclining motor (Forward)GND(Power)Reclining switch signal (Forward)3Height motor (Up)B (+)Front tilt switch signal (Up)4Slide motor (Forwa..
