Repair procedures

Inspection

Power Door Lock Switch Inspection

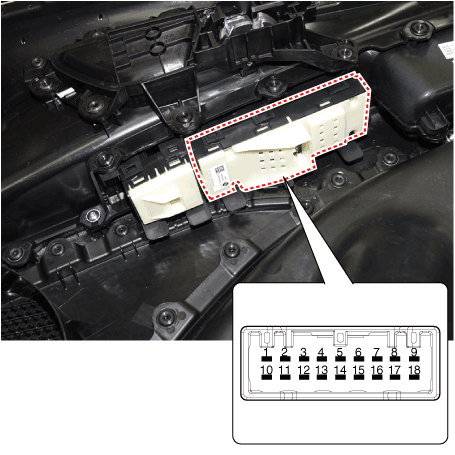

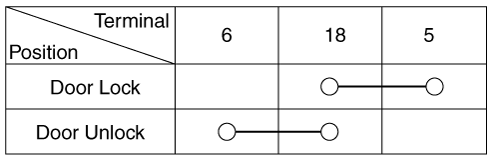

1.	Check for continuity between the terminals. If there is an abnormality, replace the switch.

Removal

•	Be careful not to scratch the door trim and other parts.

•	Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

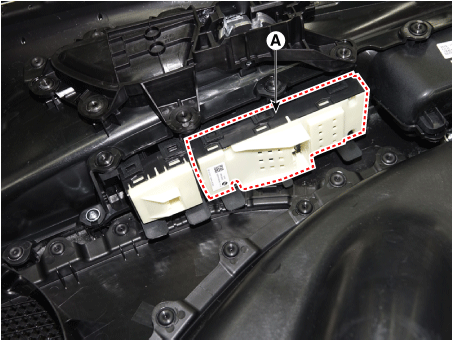

3.	Remove the power window switch assembly after disengaging the mounting clips.

Installation

1.	Install the power window switch assembly.

2.	Install the front door trim after connect the connector.

3.	Connect the negative (-) battery terminal.
