Hyundai Elantra: Air Conditioning System / PM Sensor
Description and operation
| Discription |
Monitor the air quality inside the vehicle in real time (PM sensor) and display the status on the screen.
Automatically operate when fine dust concentration is high (Condition: Bet mode + A/C ON + 3rd speed or higher)
Components and components location
| Components Location |
| 1. PM sensor |
Repair procedures
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the crash pad air vent [RH]. (Refer to Body (Interior and Exterior) - "Crash Pad Air Vent") |

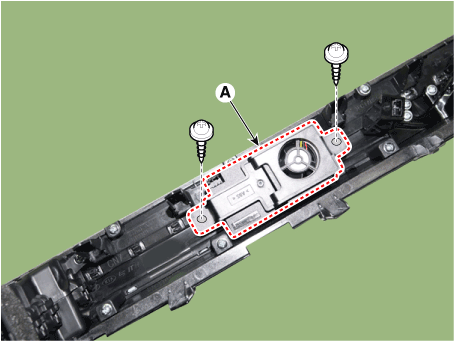

| 3. | Loosen the mounting screw and remove the PM sensor (A).
|
| 4. | Install in the reverse order of removal.
|
Auto Defogging Sensor
Description
DescriptionThe auto defogging sensor is installed on the front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging...
