Hyundai Elantra (CN7) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / In-car Sensor

Description and operation
Description
The In-car air temperature sensor is built in the heater & A/C control unit.
The sensor contains a thermistor which measures the temperature of the inside. The signal decided by the resistance value which changes in accordance with perceived inside temperature, is delivered to heater control unit and according to this signal the control unit regulates in-car temperature to intended value.
Components and components location
Components Location

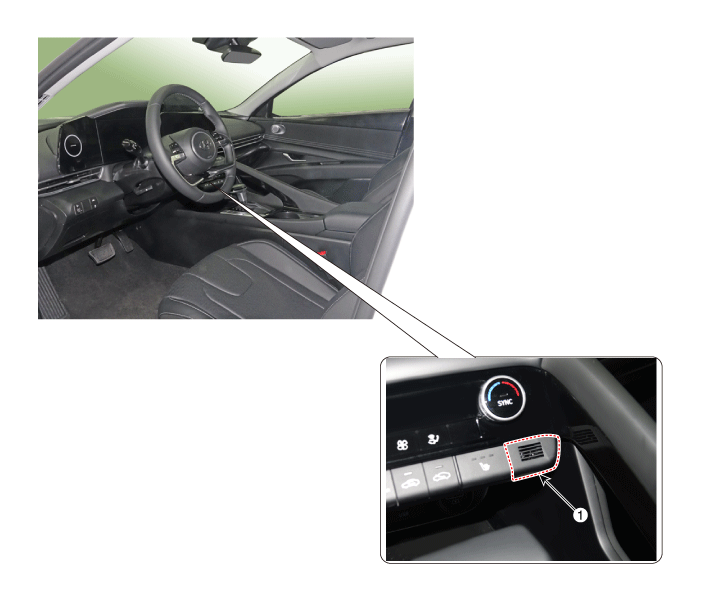

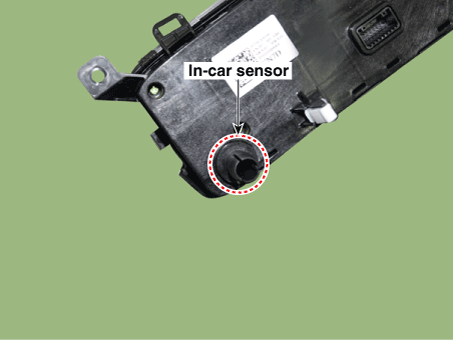

1. In-car Sensor



Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the Heater & A/C Control Unit.
(Refer to Controller - "Heater & A/C Control Unit (DATC)")

3.
To install, reverse the removal procedure.
