Hyundai Elantra: Lighting System / Head Lamps
Repair procedures
Head Lamp Aiming Instructions |
[Mechanical Aiming]
The head lamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.
•
| If there are any regulations pertinent to the aiming of head lamps in the area where the vehicle is to be used, adjust so as to meet those requirements. |
|

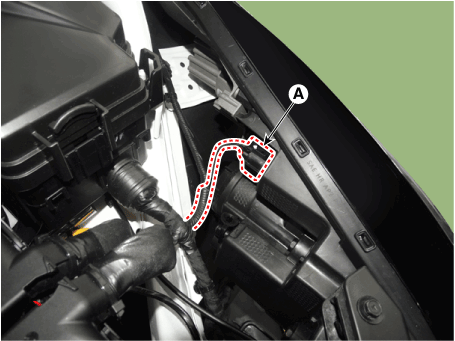

Alternately turn the adjusting gear to adjust the head lamp aiming. If beam-setting equipment is not available, proceed as follows :
1. | Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools. |
2. | The vehicle should be placed on a flat floor. |
3. | Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen. |
4. | With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines. (1) | Head lamp (Halogen) A : Horizontal (High beam / Low beam) B : Vertical (High beam / Low beam) |
(2) | Head lamp (LED) A : Horizontal (Low beam) B : Vertical (High beam / Low beam) |
|

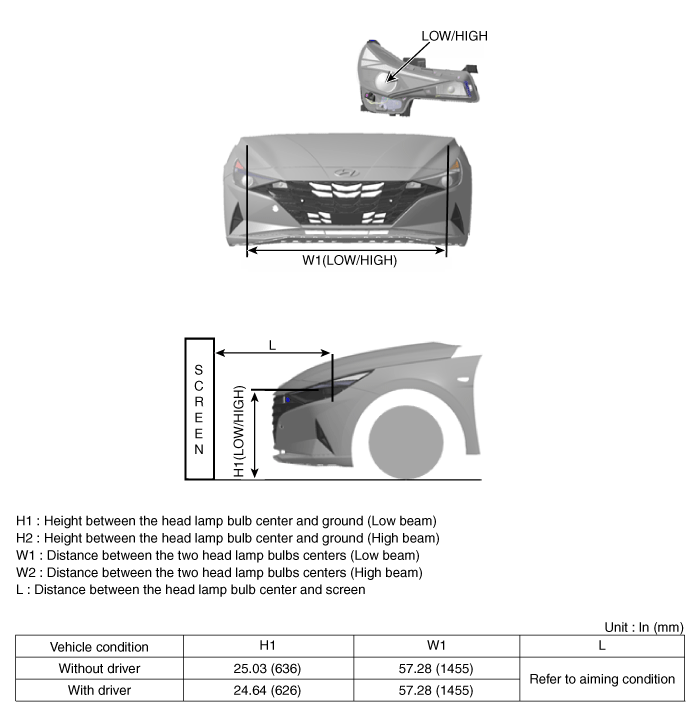

[Halogen Type]

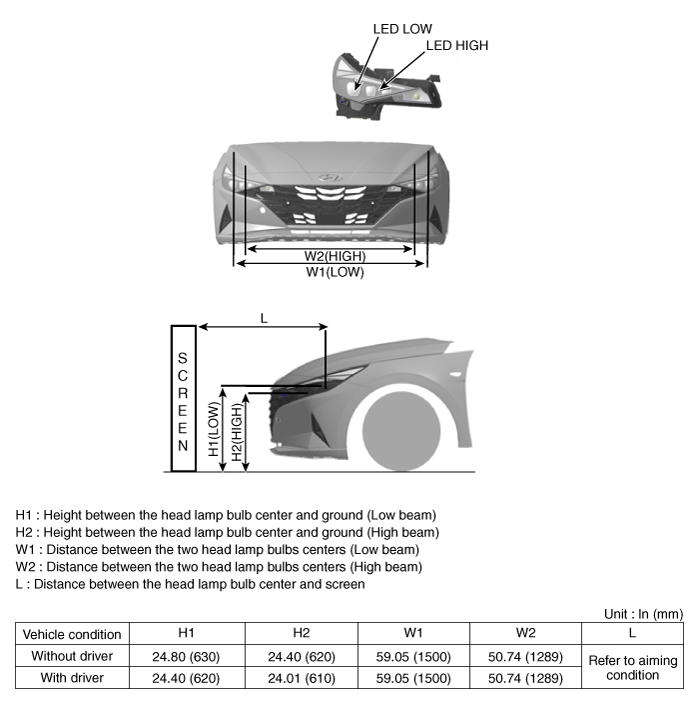

[LED Type]
1. | Head Lamp (Low beam) –

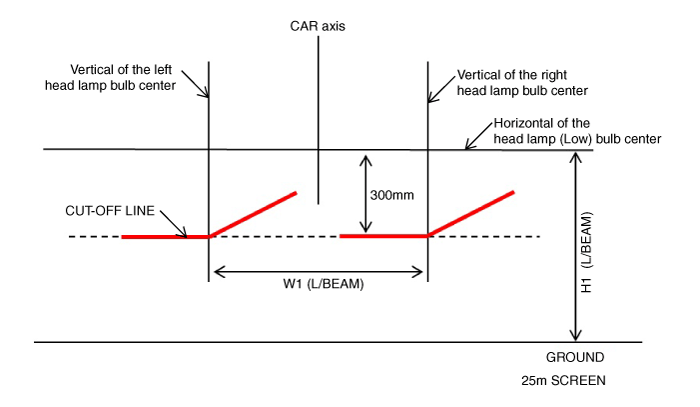

| With the low beam turned on, adjust the cut-off line to be located as shown in the picture below. |
–
| If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions. |
|

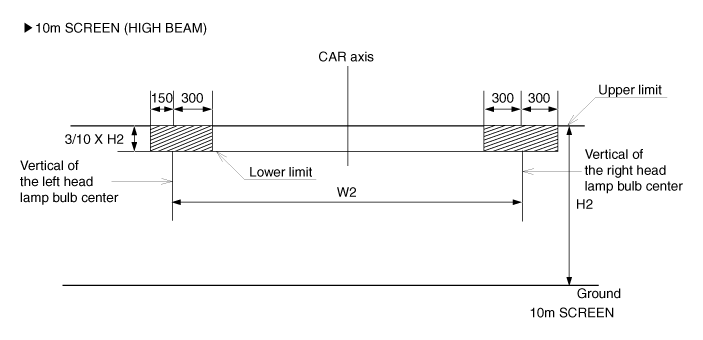

2. | Head Lamp (High beam) Turn the high beam on with driver seated in the vehicle. The hot zone should be projected in the allowable range shown in the picture. |

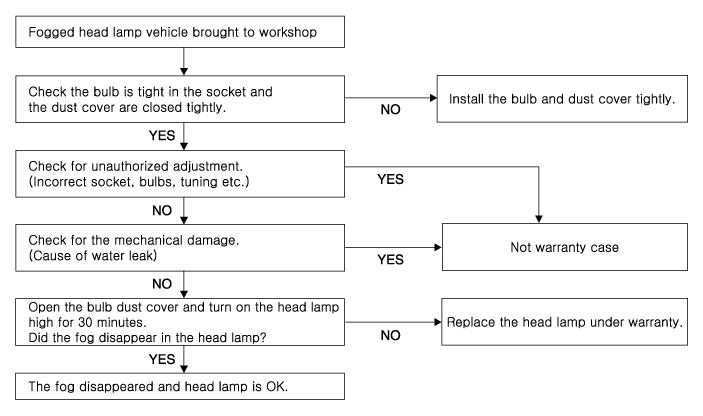

Head Lamp Fogging
Check the below instruction procedure when the head lamp is fogged.
Head lamps
1. | Disconnect the negative (-) battery terminal. |
2. | Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") |
3. | Disconnect the head lamp connector (A). |

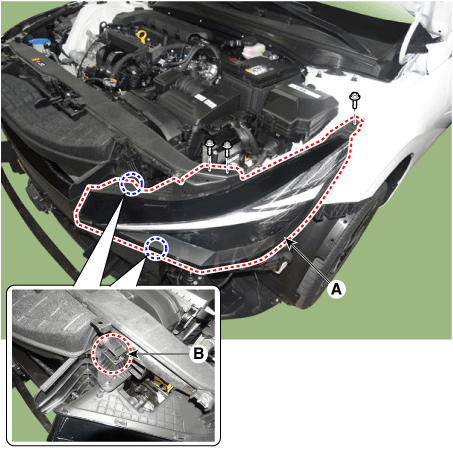

4. | Loosen the mounting bolts and remove the head lamp assembly (A). •
| Take care that holding clip (B) is not to be damaged. |
|
|
LED Driver module
2. | Loosen the mounting screws and remove the LED Driver module (A). |

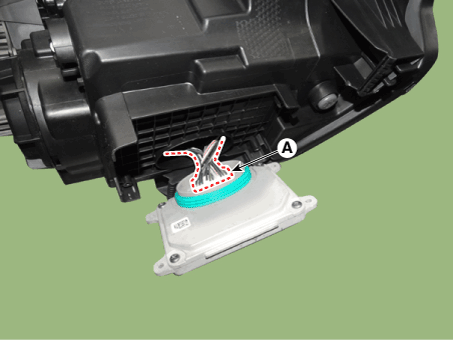

3. | Disconnect the LED Driver module connector (A). |
Head lamps
1. | Install the head lamp assembly after connecting the connector. |
2. | Install the front bumper corver. |
3. | Connect the negative (-) battery terminal. |
LED Driver module
1. | Install the LED Driver module and connector. |
3. | Connect the negative (-) battery terminal. |
Head lamp bulb (Halogen type)

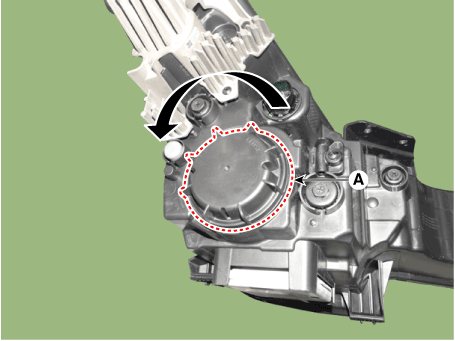

2. | Remove the dust cap (A) and replacement the bulb. |
Moisture absorbent of the head lamp
–
| After the testing of moisture, replace if necessary. Testing of moisture |
•
| Start the engine , turn on the head lamp and open the dust cover. |
•
| If there is moisture after 30 minutes, replace the moisture absorbent . |
|
2. | Remove the dust cap (A) and replacement the bulb. |

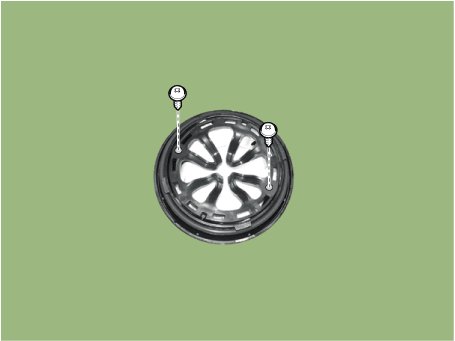

3. | Loosen the mounting screws and remove the moisture-absorbing agent. |
•
| Grasp the moisture absorbent and form a round shape. |
•
| Do not insert the moisture absorbent folded.
|
•
| Be careful to ensure that the moisture absorbent packaging is not damaged when fastening the screws. |
|
