Hyundai Elantra: Dual Clutch Transmission Control System / Gear Actuator Assembly
Description and operation
•
| Gear actuator uses signals from TCM to control the gear. |
Specifications
Item
|
Specification
|
Operation condition
| -40 to 257 °F (- 40 to 125 °C )
|
Rated voltage
| 12V
|
Components and components location

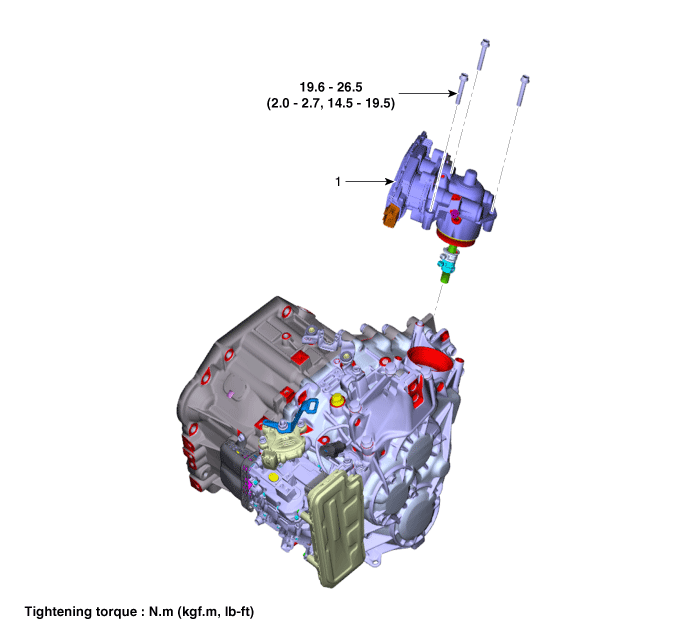

1. Gear actuator assembly
|
|
Schematic diagrams

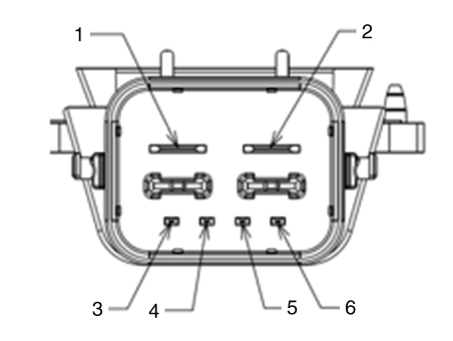

[Connector and Terminal Function] |

Pin
|
Description
|
Pin
|
Description
|
1
| Ground (Power)
| 4
| CAN3 Low
|
2
| Battery Power
| 5
| CAN4 High
|
3
| CAN3 High
| 6
| CAN4 Low
|
Repair procedures
1. | The DCT system can be more quickly diagnosed for troubles by using the vehicle diagnostic system (diagnostic tool). (Refer to DTC guide) diagnostic tool provides the following information. 1) | Self diagnosis : Inspects and displays diagnostic trouble code (DTC) |
2) | CAN signals : Checks the system input/output value status |
3) | Forced operation : Checks the system operating status |
4) | Additional function : Controls system options, zero point adjustment and other functions |
|
1. | Turn ignition switch OFF and disconnect the battery negative (-) terminal. |
2. | Remove the air cleaner assembly and air duct. (Refer to Engine Mechnical System - "Air Cleaner") |
3. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |

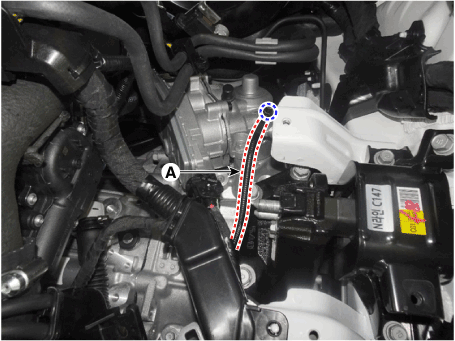

4. | Loosen the bolts and then remove the ground line (A).
|

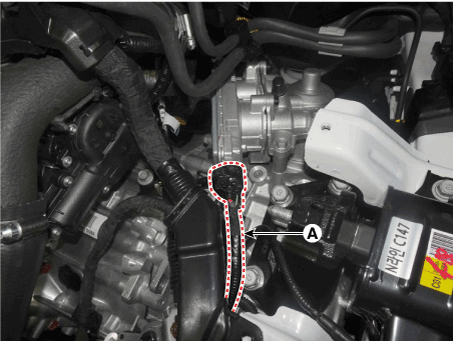

5. | Disconnect the gear actuator connector (A).
|

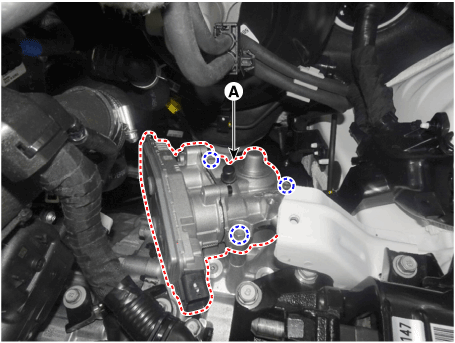

6. | Remove the gear actuator assembly after loosening bolts (A). Tightening torque : 19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft) |

|
1. | To install, reverse the removal procedure. •
| Check the details below before installing the gear actuator assembly. |
1) | Check that the gear actuator is placed in the "neutral" state. |

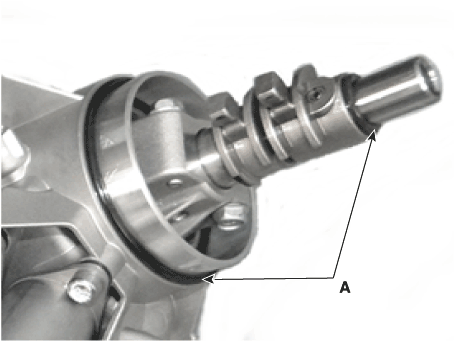

2) | Check the assembled state of the O-rings (A).
|
3) | Apply gear oil to the surface of O- rings. |

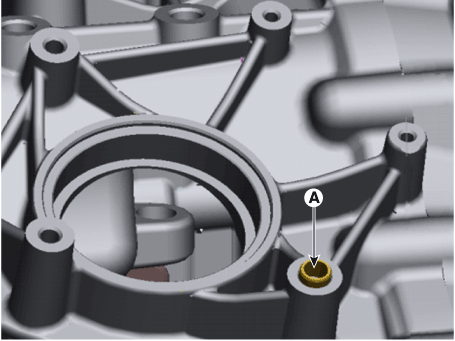

4) | Check the assembled state of the dowel pins (A).
|
•

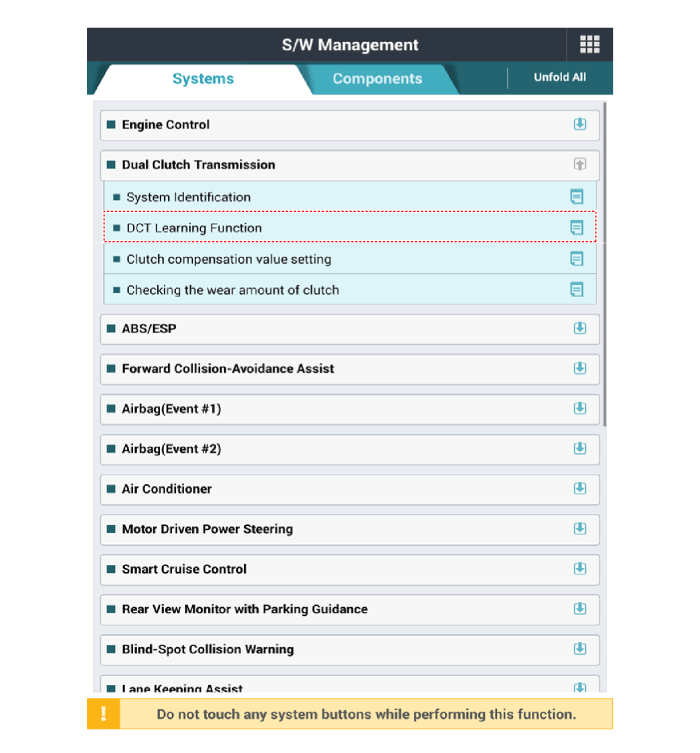

| Perform the clutch touch point learning procedure using the diagnostic tool after replacing the clutch actuator assembly.
|
|
|
