Hyundai Elantra: Interior Trim / Front Pillar Trim

Components and components location

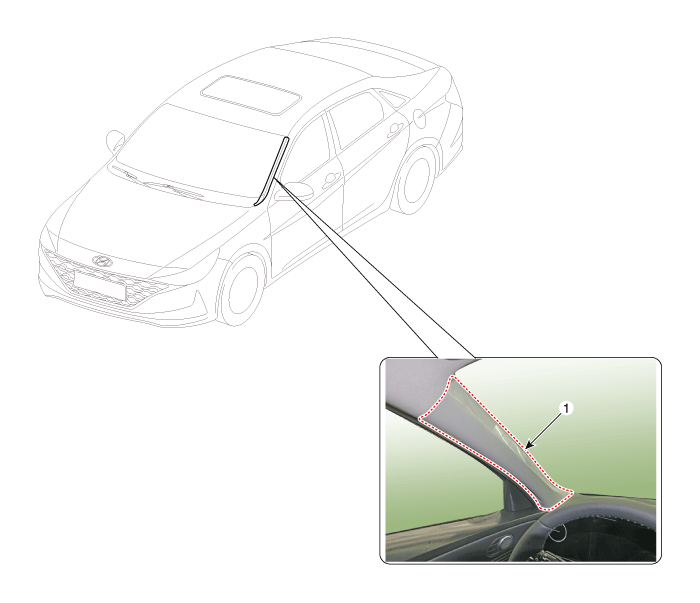

Component Location

1. Front pillar trim


Repair procedures
Replacement

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Take care not to bend or scratch the trim and panels.
1.
Remove the front pillar trim.
(1)

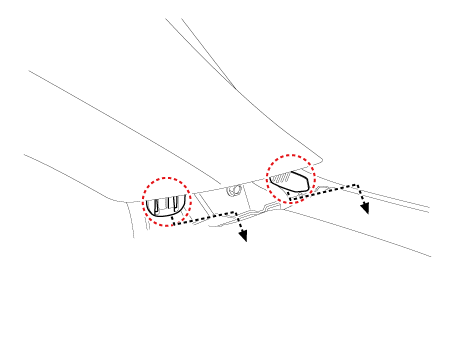

To remove the front pillar trim, the fastener remover (A) below must be used.

(2)

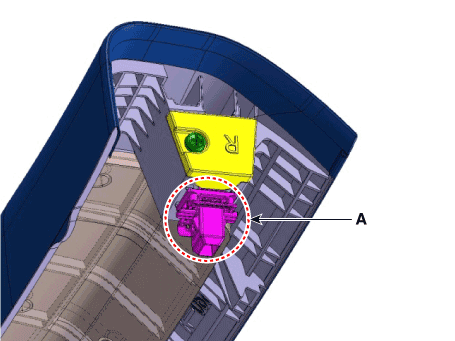

After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.

Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.

(3)

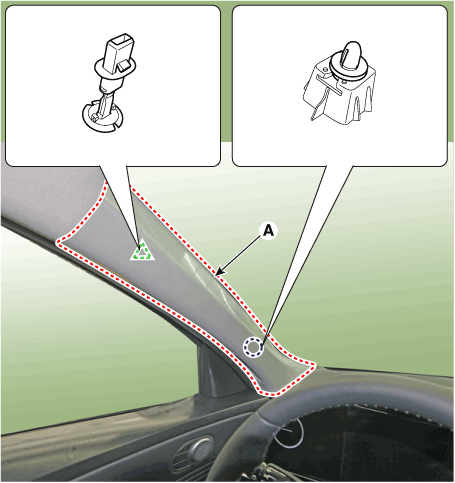

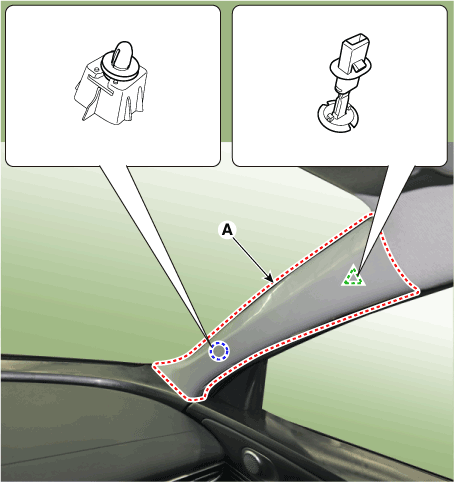

Remove the front pillar trim (A).
[LH]

[RH]


Front Pillar Trim Mounting Method

Once the front pillar trim is removed, be sure to replace the clip (A) with new ones.

2.
To install, reverse the removal procedure.

Replace any damaged clips (or pin - type retainers).
Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.

    Cowl Side Trim
