Hyundai Elantra: Side View Mirrors / Folding the side view mirrors

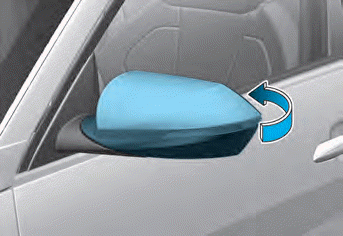

To fold the side view mirrors, grasp the housing of the mirror and then fold it inwards.
