Hyundai Elantra: Driving Safety / Driver Attention Warning (DAW)
Basic function
Driver Attention Warning can help determine the driver's attention level by analyzing driving pattern, driving time, etc. while vehicle is being driven. The system can recommend a break when the driver’s attention level falls below a certain level.
Leading Vehicle Departure Alert function
Leading Vehicle Departure Alert function can inform the driver when the front vehicle departs from a stop.
Detecting sensor
.png)

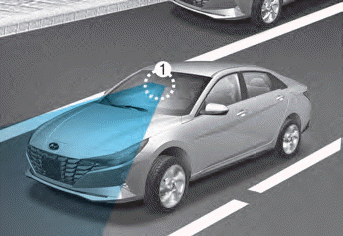

[1] : Front view camera
The front view camera is used to help detect driving patterns and front vehicle departure while vehicle is being driven.
Refer to the picture above for the detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in good condition to maintain optimal performance of Driver Attention Warning.
For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
Function malfunction and
limitations
Function malfunction
When Intelligent Speed Limit Assist is not
working properly, the ‘Check speed limit
system’ warning message will appear on
the cluster...
Function settings
Setting
Driver Attention Warning
With the engine on, select or deselect
‘Driver Assistance → Driver Attention
Warning’ from the Settings menu to set
whether or not to use each function...
