Hyundai Elantra (CN7) 2021-2024 Service Manual / Engine Mechanical System / Cooling System / Cooling Fan

Components and components location

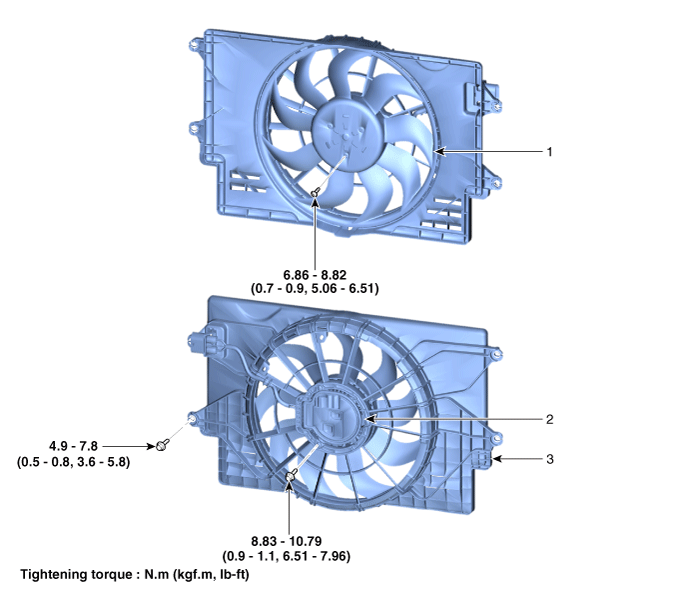

Components

1. Cooling fan
2. Fan motor
3. Cooling fan shroud

Repair procedures
Removal and Installation
Cooling Fan Assembly
1.
Disconnect the negative battery terminal.
2.
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
3.

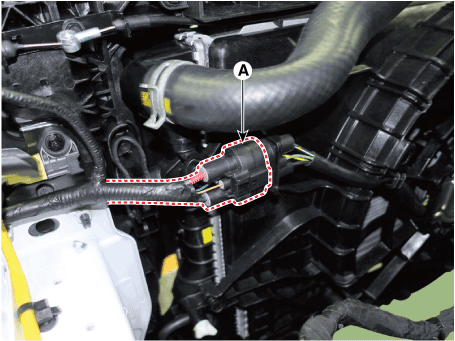

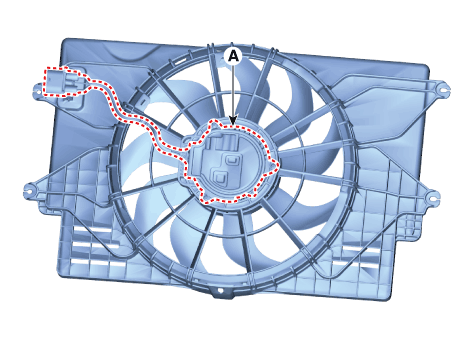

Disconnect the cooling fan connector (A).

4.

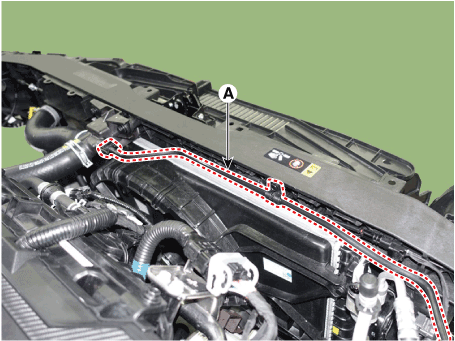

Disconnect the degassing hose (A) and hose fastener.

5.

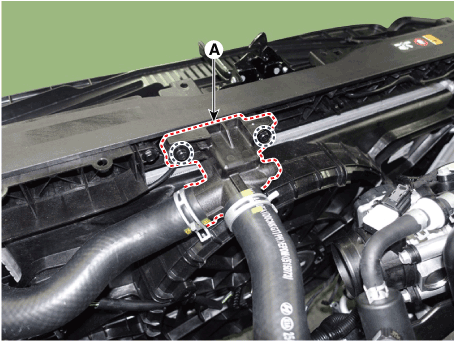

Remove the filler neck assembly (A).
Tightening torque:
7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

6.

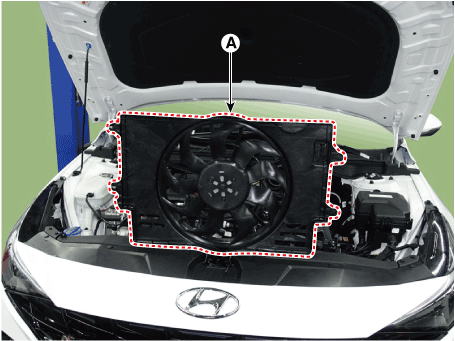

Remove the cooling fan (A) from the radiator.
Tightening torque:
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 Ib-ft)

7.
Install in the reverse order of removal.
Disassembly
1.

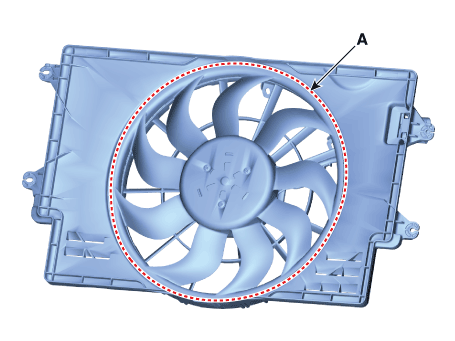

Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque :
6.86 - 8.82 N.m (0.7 - 0.9 kgf.m, 5.06 - 6.51 Ib-ft)

2.
Remove the fan motor (A) from the cooling fan shroud.
Tightening torque :
8.83 - 10.79 N.m (0.9 - 1.1 kgf.m, 6.51 - 7.96 Ib-ft)

3.
Install in the reverse order of removal.
Inspection
Fan motor
1.
Turn ignition switch "OFF" and connect the diagnostic tool to the Data Link Connector.
2.
With the gear shift in P (Park) position and ignistion switch "ON" (LED of the Power button illuminates in Red), select the "force drive" function.
3.
Force drive the cooling fan motor.
(1)

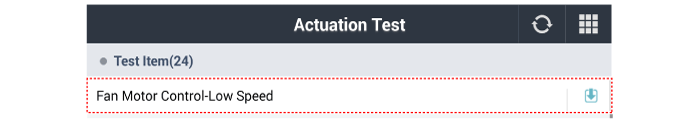

Start the "Fan motor low speed" of the force drive function.

(2)

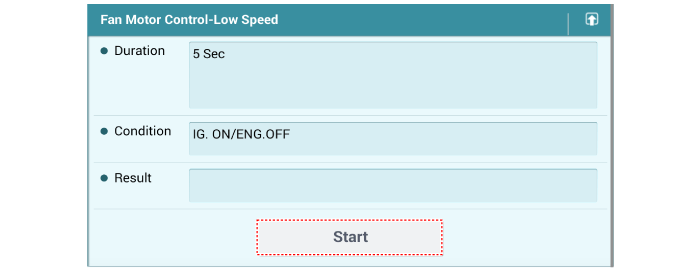

Press the start button and force drive for 5 seconds.

(3)
Visually check the operation of the cooling fan.
