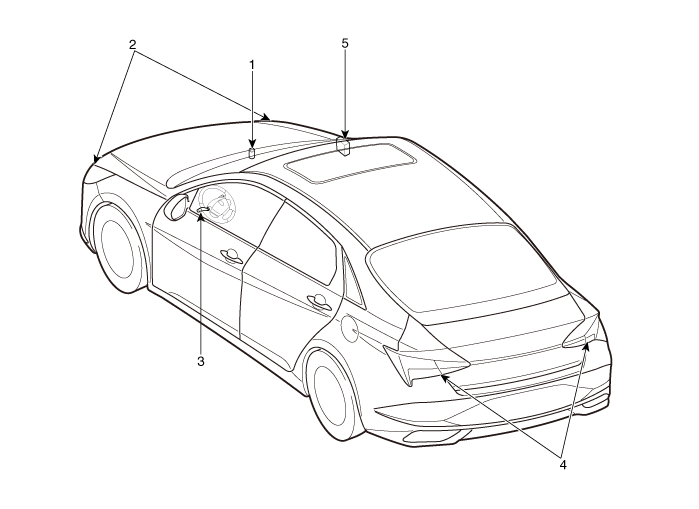

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)

4. Rear combination lamps
5. Integrated body control unit (IBU)

Description and operation

DescriptionIt's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination condition...

Specifications

Specifications Items Specifications Rated voltage5VLoadMax. 1mA (Relay load)Illuminations (LUX)1000...
