Hyundai Elantra: Electro Chromic Inside Rear View Mirror / Components and components location

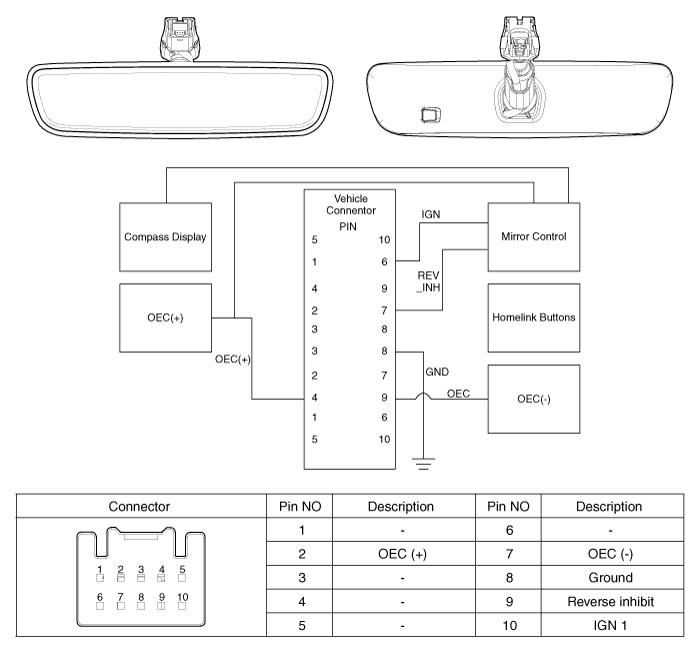

Components (1)

    Description and operation

    DescriptionThe ECM (Electro Chromatic inside rear view Mirror) is intended dim the reflecting light in the rear view mirror. The forward facing sensor detects brightness of the surroundings, while the rearward looking sensor is for the light from the rear...

    Repair procedures

    InspectionCheck it by the procedure below to see if the function of the ECM is normal.1.Turn the ignition key to the "ON" position.2.Cover the forward facing sensor...
