Hyundai Elantra: Rear Glass Defogger / Components and components location
Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

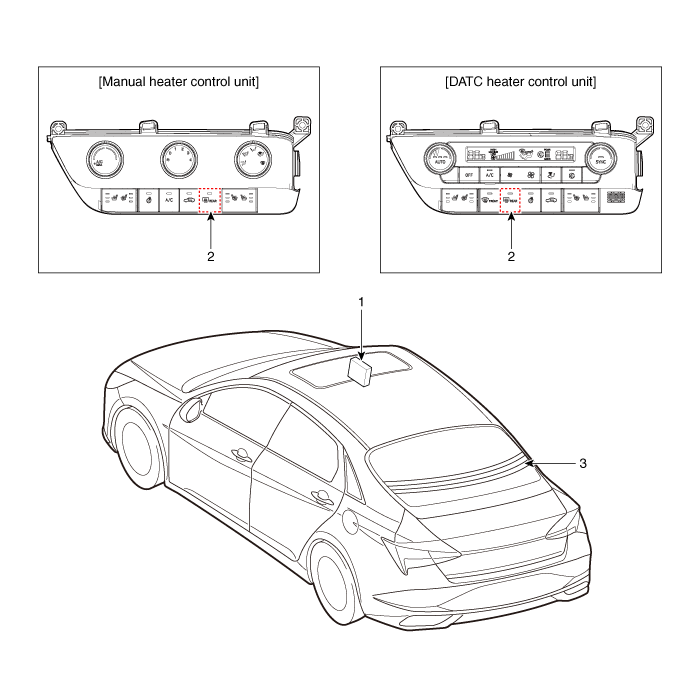

| Component Location |
| 1. Integrated body control unit (IBU) 2. Rear glass defogger switch | 3. Rear glass defogger |
Rear Glass Defogger Printed Heater
Repair procedures
Inspection
•
Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line...
