Hyundai Elantra: Power Windows / Components and components location

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Power Windows / Components and components location

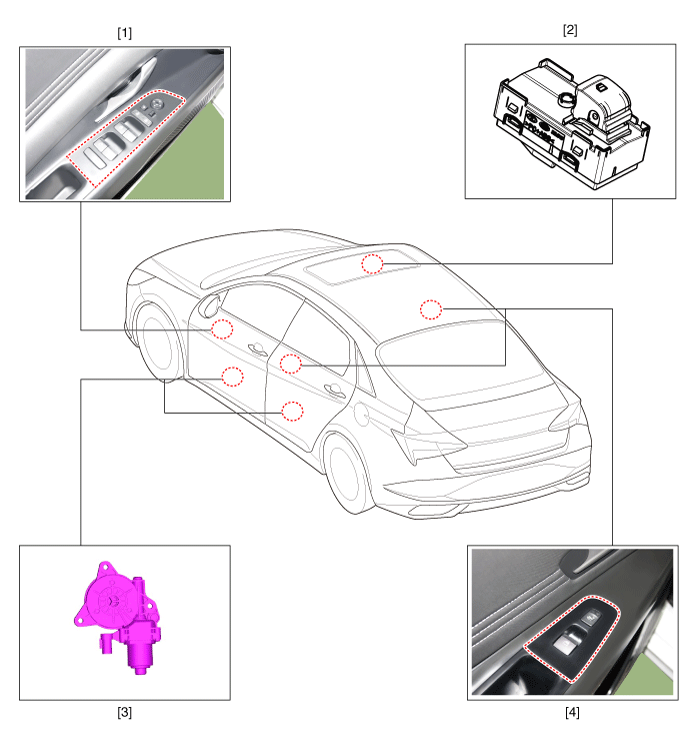

Component Location

1. DDM (Driver Door Module)
2. ADM (Assistant Door Module)

3. Front/Rear window motor
4. RDM / RLDM (Rear Door Module)

Description and operation

Function of Safety Power WindowWhen driver door power window auto-up switch is operated, safety function is activated.1.Safety function conditionWhen detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed...

Power Window Motor

Components and components location Components Schematic diagrams Circuit DiagramStandard type Repair procedures Inspection • Wrap the protective tape on the tool to disassemble with the screwdriver or remover...
