Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Sunroof / Components and components location
| Components |

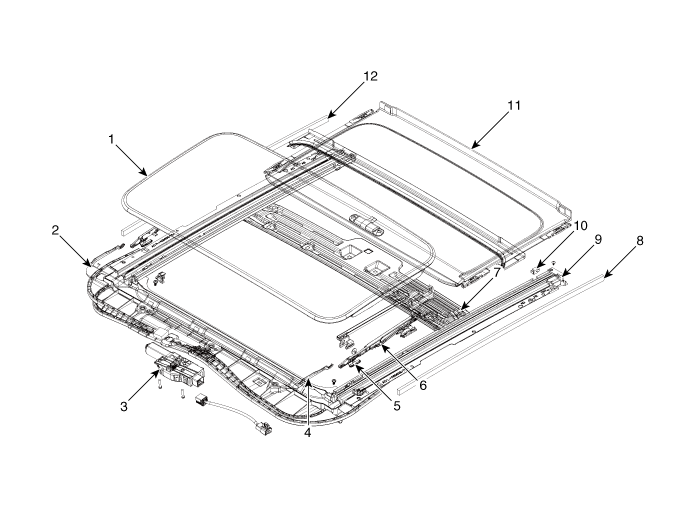

| 1. Glass panel assembly 2. Deflector 3. Motor assembly 4. Spring base assembly 5. Seth plate assembly 6. Guide assembly | 7. Frame sub assembly 8. Seal tape 9. Rear drip 10. Stopper 11. Sunshade assembly 12. Drip rail assembly |
Sunroof
..
Repair procedures
AdjustmentInspect Glass Alignment1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value [mm(in...
