Hyundai Elantra: Audio / Audio Unit
Components and components location
Audio

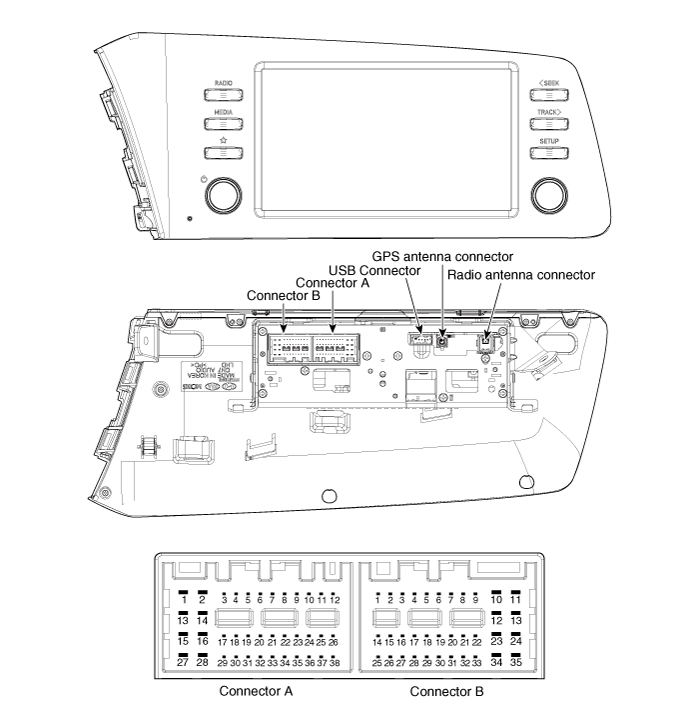

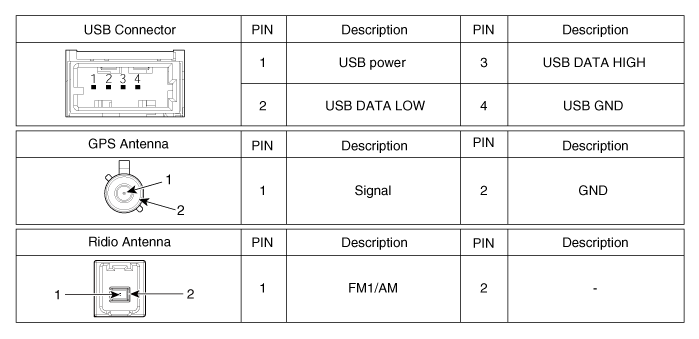

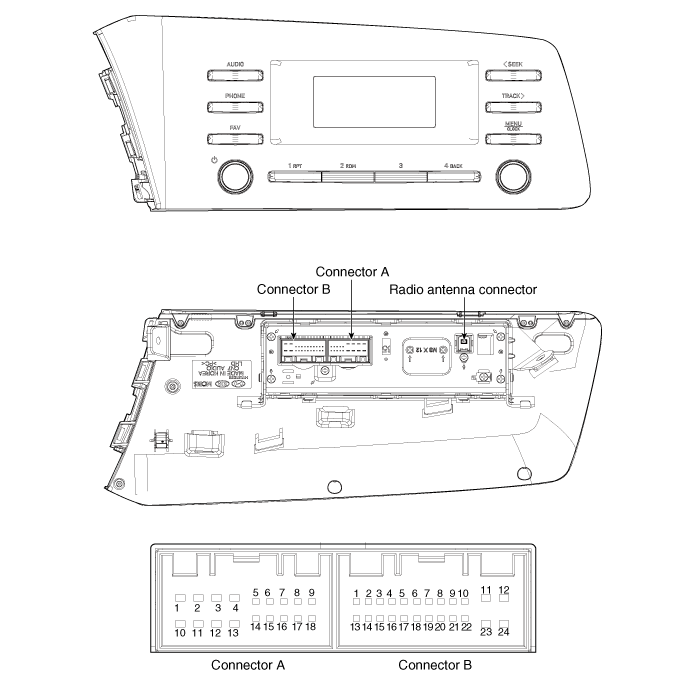

Connector Pin Information
No
|
Connector A
|
Connector B
|
1
| Rear left speaker (+)
| MM_CAN High
|
2
| Front left speaker (+)
| -
|
3
| Front right speaker (+)
| -
|
4
| Rear right speaker (+)
| Steering wheel remote
|
5
| -
| -
|
6
| Door open
| USB DATA (+)
|
7
| IGN1
| USB VOC
|
8
| Illumination (+)
| -
|
9
| Detent
| -
|
10
| Rear left speaker (-)
| Mic (+)
|
11
| Front left speaker (-)
| ACC
|
12
| Front right speaker (-)
| B+
|
13
| Rear right speaker (-)
| MM_CAN Low
|
14
| -
| -
|
15
| -
| -
|
16
| -
| Vehicle Speed
|
17
| Illumination (-)
| Steering wheel remote GND
|
18
| -
| USB DATA (-)
|
19
|
| USB GND
|
20
| -
|
21
| -
|
22
| Mic (-)
|
23
| -
|
24
| GND
|
[Display Audio]

Connector Pin Information
No
|
Connector A (Int AMP)
|
Connector A (Ext AMP)
|
Connector B
|
1
| Rear left speaker (+)
| -
| -
|
2
| Reart left speaker (-)
| -
| MIC Signal (+)
|
3
| -
| AMP Navi Voice (+)
| -
|
4
| -
| AMP SPDIF (HI)
| -
|
5
| -
| -
| Antenna Powr
|
6
| Camera Power
| Camera Power
| ILL (+)
|
7
| Camera Video
| Camera Video
| MM CAN (HI)
|
8
| -
| -
| -
|
9
| -
| -
| -
|
10
| -
| -
| B+
|
11
| -
| -
| B+
|
12
| Steering wheel remote
| Steering wheel remote
| GND
|
13
| Front lift speaker (+)
| -
| GND
|
14
| Front lift speaker (-)
| -
| MIC GND
|
15
| Front right speaker (-)
| -
| MIC Signal (-)
|
16
| Front right speaker (+)
| -
| -
|
17
| -
| AMP Navi Voice (-)
| -
|
18
| -
| AMP SPDIF (LOW)
| -
|
19
| -
| AMP SPDIF GND
| -
|
20
| Camera Power GND
| Camera Power GND
| MM CAN (LOW)
|
21
| Camera Video GND
| Camera Video GND
| -
|
22
| -
| -
| ACC
|
23
| -
| -
| -
|
24
| -
| -
| -
|
25
| -
| -
| -
|
26
| Steering wheel remote GND
| Steering wheel remote GND
| -
|
27
| Rear right speaker (-)
| -
| -
|
28
| Rear right speaker (+)
| -
| -
|
29
| -
| -
| -
|
30
| -
| -
| -
|
31
| -
| -
| -
|
32
| -
| -
| -
|
33
| -
| -
| IGN 1
|
34
| -
| -
| -
|
35
| -
| -
| -
|
36
| -
| -
|
|
37
| -
| -
|
38
| Speed
| Speed
|

Repair procedures
•
| Take care not to scratch the cluster fascia panel and related parts. |
•
| Wrap the protective tape on the tool to disassemble with the screwdriver or remover. |
•
| Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil. |
|
1. | Disconnect the negative (-) battery terminal. |

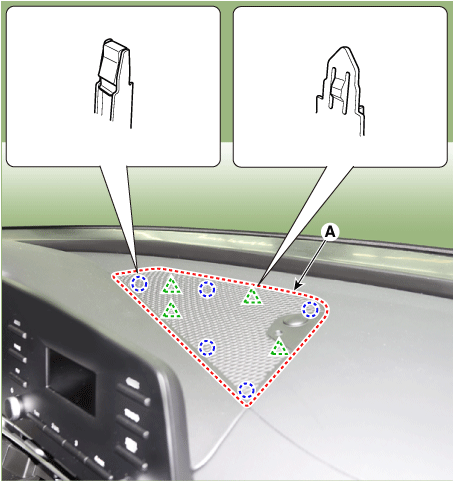

2. | Using a flat-tip screwdriver or remover, remove the photo sensor cover (A).
|

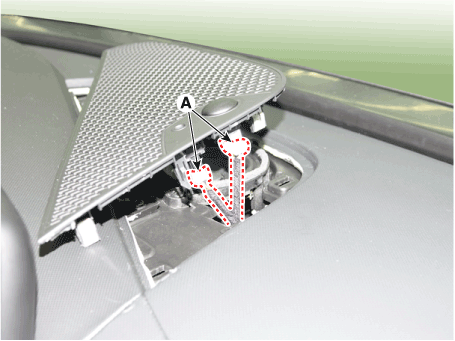

3. | Disconnect photo sensor connector and security sensor connector (A).
|

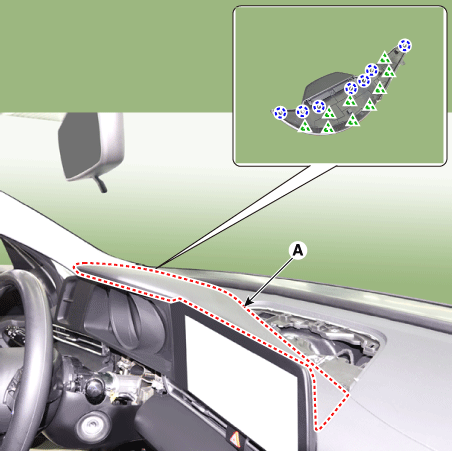

4. | Using a flat-tip screwdriver or remover, remove the cluster fascia upper garnish (A).
|

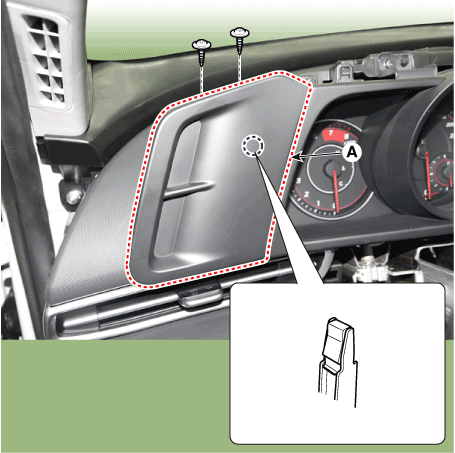

5. | Remove the cluster fascia side panel (A) after mounting screws.
|

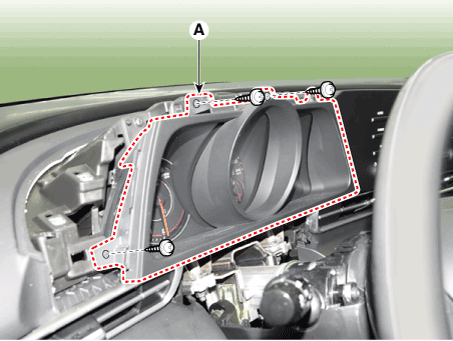

6. | Remove the cluster fascia panel (A) after loosening mounting screws.
|

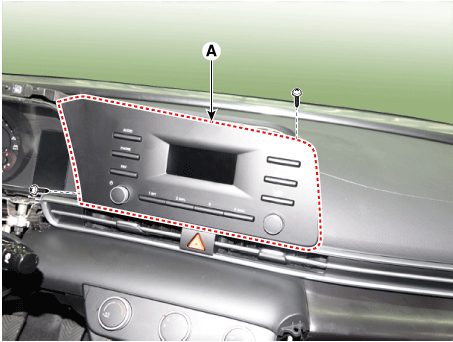

7. | Remove the audio head unit (A) after loosening the screws.
|

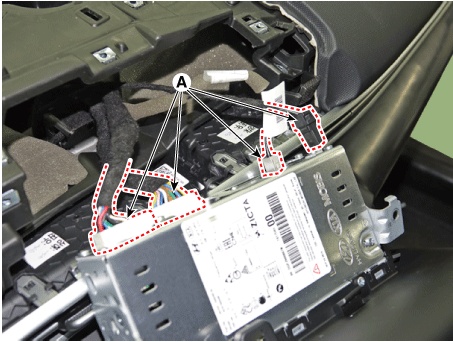

8. | Remove the audio head unit after disconnecting the connectors and cable (A).
|
1. | Connect the audio unit connectors and cable. |
2. | Install the audio head unit. |
3. | Install the cluster fascia panal. |
4. | Install the cluster fascia side panal. |
5. | Install the cluster fascia upper garnish. |
6. | Install the photo sensor cover. |
7. | Connect the negative (-) battery terminal. •
| Make sure the connector are connected in properly. |
•
| Check the audio system. |
|
|
