Hyundai Elantra: Fuel Delivery System / Accelerator Pedal

Repair procedures
Removal
1.
Turn the ignition switch OFF and disconnect the negative (-) battery cable.
2.

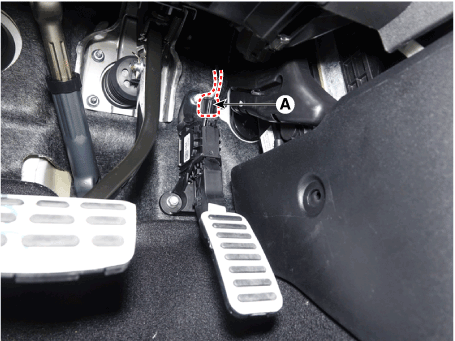

Disconnect the accelerator position sensor connector (A).

3.

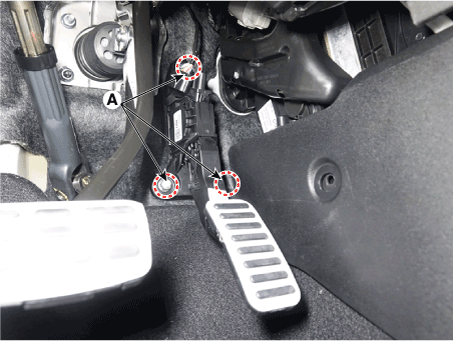

Remove the installation nuts, and then remove the accelerator pedal module (A).
Tightening Torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

Installation
1.
Install in the reverse order of removal.
