Hyundai Elantra: Cylinder Head Assembly / Vacuum Pump
Repair procedures
1. | Disconnect the battery negative terminal. |
2. | Remove the air duct and air cleaner assembly. (Refer to Intake and Exhaust System - "Air Cleaner") |
3. | Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |

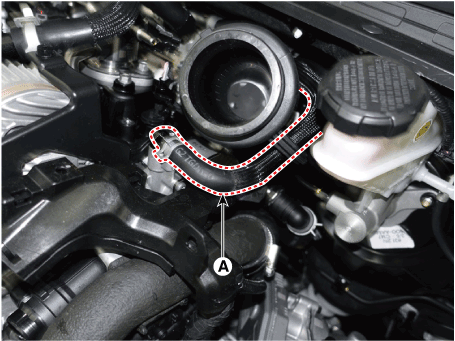

4. | Disconnect the brake vacuum hose (A).
|

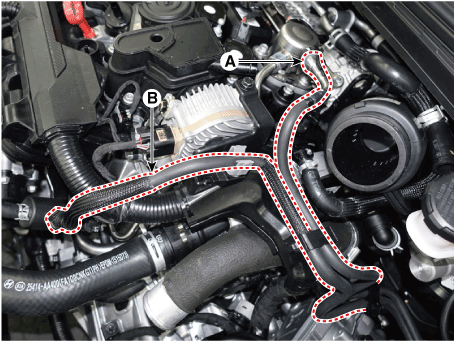

5. | Disconnect the fuel hose (A) and PCSV hose (B).
|

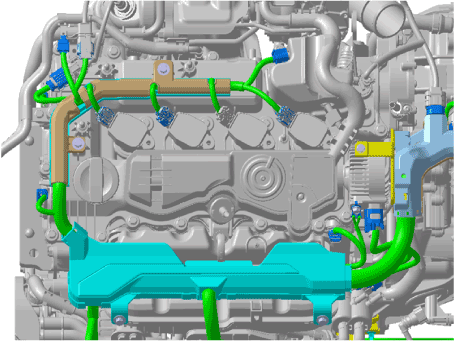

6. | Remove the main wiring protector (A) after disconnecting the connector (B).
|

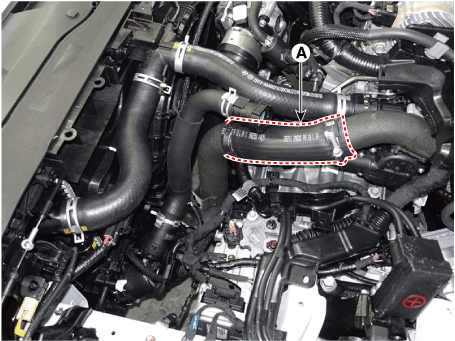

7. | Disconnect the intercooler inlet hose (A). Tightening torque : Clamp bolt : 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft) |

•
| Insert the hose until it reaches the end of stopper. |
|
|

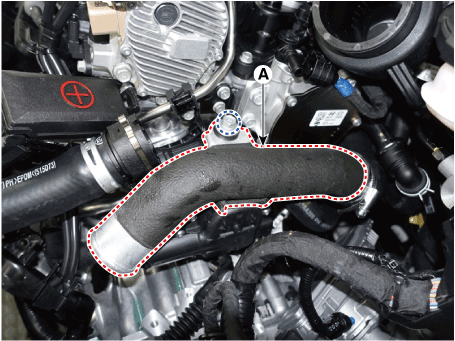

8. | Remove the intercooler pipe (A). Tightening torque : Mounting bolt : 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft) Clamp bolt : 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft) |

•
| Insert the hose until it reaches the end of stopper. |
|
|

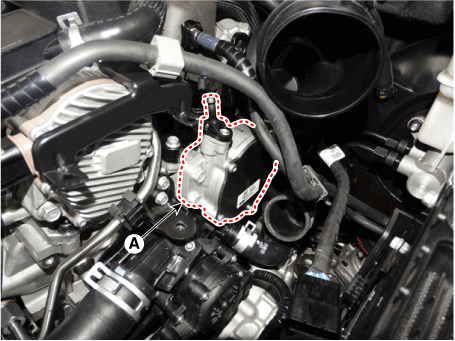

9. | Remove the vaccum pump (A). Tightening torque : 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft) |

|
10. | Install in the reverse order of removal. |
