Hyundai Elantra: Suspension System / Specifications
Hyundai Elantra (CN7) 2021-2024 Service Manual / Suspension System / Specifications
| Specifications |
Front Suspension
|
Item
|
Specification
| |
| Suspension type | MacPherson Strut | |
| Shock absorber | Type | Advanced Valve (RS Valve) |
Rear Suspension
|
Item
|
Specification
| |
| Suspension type | Torsion Beam Axle | |
| Shock absorber | Type | Advanced Valve (RS Valve) |
Wheel & Tire
|
Item
|
Specification
| ||
|
Front wheel
|
Rear wheel
| ||
| Wheel | Steel | 6.0J * 15 | |
| Aluminum | 6.0J * 15 | ||
| 6.5J * 16 | |||
| 7.0J * 17 | |||
| Tire | 195/65 R15 | ||
| 205/55 R16 | |||
| 225/45 R17 | |||
| Spare tire | T125/80D15 | ||
| T125/80D16 | |||
|
Item
|
Normal Load
|
Max Load
| |||
|
Front
|
Rear
|
Front
|
Rear
| ||
| Tire pressure kPa (bar/psi) | 195/65 R15 | 235 (2.35/34) | 215 (2.15/31) | 240 (2.4/35) | 240 (2.4/35) |
| 205/55 R16 | |||||
| 225/45 R17 | |||||
| T125/80D15 | 420 (4.2/60) | ||||
| T125/80D16 | |||||
Wheel Alignment
|
Item
|
Specification
| ||
|
Front
|
Rear
| ||
| Toe-in | Total | 0.1° ± 0.2° | 0.26° ± 0.3° |
| Individual | 0.05° ± 0.1° | 0.13° ± 0.15° | |
| Camber angle | -0.56° ± 0.5° (N.A / CHINA) -0.5° ± 0.5° (DOM / AUS) -0.37° ± 0.5° (GEN / M.E / EU / RUS) -0.30° ± 0.5° (BRZ / MEXICO) | -1.2° ± 0.5° | |
| Caster angle | 4.55° ± 0.5° | - | |
| King - pin angle | 14.5° ± 0.5° | - | |
| Ride height | 383mm ± 10mm | 383mm ± 10mm | |

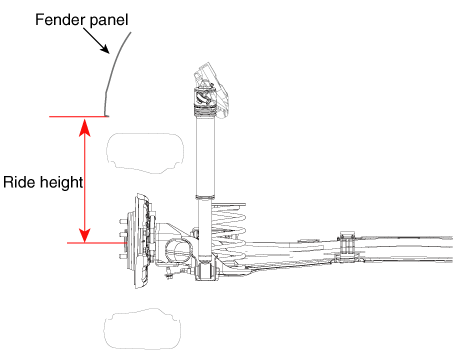

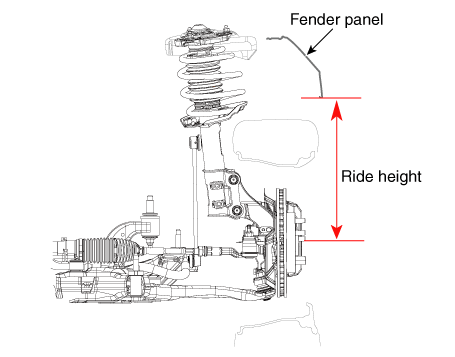

[Ride height]
|
| Tightening torque |
Front Suspension
|
Item
|
Tightening torque (kgf.m)
| ||
|
N.m
|
Kgf.m
|
lb-ft
| |
| Tire wheel hub nuts | 107.9 - 127.5 | 11.0 - 13.0 | 79.6 - 94.0 |
| Lower arm to sub frame A bush | 68.6 N.m + 180° | 7 kgf.m + 180° | 50.6 lb-ft + 180° |
| Lower arm to sub frame G bush | 68.6 N.m + 270° | 7 kgf.m + 270° | 50.6 lb-ft + 270° |
| Lower arm to front axle | 68.6 - 80.4 | 7.0 ~ 8.2 | 50.6 - 59.3 |
| Tie rod end to front axle | 34.3 - 44.1 | 3.5 ~ 4.5 | 25.3 - 32.5 |
| Steering gear box to sub frame | 107.9 - 127.5 | 11.0 - 13.0 | 79.6 - 94.0 |
| Stabilizer bar to stabilizer link | 98.1 - 117.7 | 10.0 - 12.0 | 72.3 - 86.8 |
| Stabilizer bar to sub frame | 49.0 - 63.7 | 5.0 - 6.5 | 36.2 - 47.0 |
| Stabilizer link to front strut assembly | 98.1 - 117.7 | 10.0 - 12.0 | 72.3 - 86.8 |
| Strut assembly to axle | 156.9 - 176.5 | 16.0 - 18.0 | 115.7 - 130.2 |
| Strut assembly to frame | 53.9 - 73.5 | 5.5 - 7.5 | 39.8 - 54.2 |
| Strut assembly self locking nut | 98.1 - 107.9 | 10.0 - 11.0 | 72.3 - 79.6 |
| Universal joint to pinion of steering gear | 49.0 - 58.8 | 5.0 - 6.0 | 36.2 - 43.4 |
| Sub frame mounting bolt and nut | 176.5 - 196.1 | 18.0 - 20.0 | 130.2 - 144.7 |
| Sub frame bracket stay mounting bolts | 44.1 - 58.8 | 4.5 - 6.0 | 32.5 - 43.4 |
| Roll rod mounting bolt & nut | 107.9 - 127.5 | 11.0 - 13.0 | 79.6 - 94.0 |
| 49.0 - 63.7 | 5.0 - 6.5 | 36.2 - 47.0 | |
Rear Suspension
|
Item
|
Tightening torque (kgf.m)
| ||
|
N.m
|
Kgf.m
|
lb-ft
| |
| Tire wheel hub nuts | 107.9 - 127.5 | 11.0 - 13.0 | 79.6 - 94.0 |
| Rear shock absorber to frame | 49.0 - 63.7 | 5.0 ~ 6.5 | 36.2 - 47.0 |
| Rear shock absorber to torsion beam axle | 98.1 - 117.7 | 10.0 - 12.0 | 72.3 - 86.8 |
| Rear torsion beam axle to stay | 68.6 N.m + 270° | 7.0 kgf.m + 270° | 50.6 lb-ft + 270° |
| Rear torsion beam axle stay to body (M12 bolts and nuts) | 98.1 - 117.7 | 10.0 - 12.0 | 72.3 - 86.8 |
| Rear torsion beam axle stay to body (M10 bolt) | 44.1 - 53.9 | 4.5 ~ 5.5 | 32.5 - 39.8 |
Troubleshooting
T..
Special service tools
Special Service Tools
Tool (Number and Name)
IIIustration
Use
09546-3X100Shock absorber lock nut removal toolUsed for remove the shock absorber lock nut09568-1S100Ball joint removerSaperate the ball joint from the front alxe09551-AL100Rear torsion beam axle bush removal / installation toolRear torsion beam axle bush re..
