Hyundai Elantra: Driving Convenience / Smart Cruise Control (SCC)

Smart Cruise Control is designed to detect the vehicle ahead and help maintain the desired speed and minimum distance between the vehicle ahead.

Overtaking Acceleration Assist

While Smart Cruise Control is operating, if the system judges that the driver is determined to overtake the vehicle in front, acceleration will be assisted.

Detecting senor

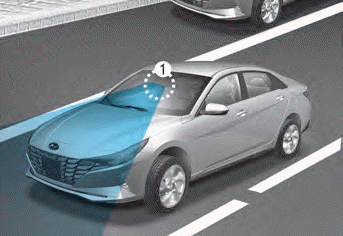

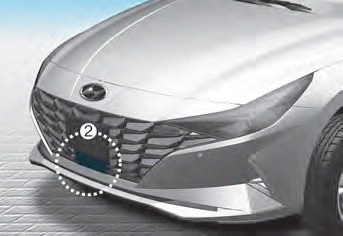

[1] : Front view camera, [2] : Front radar

The front view camera and front radar are used as a detecting sensor to help detect the vehicles in front.

Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Always keep the front view camera and front radar in good and clean condition to maintain optimal performance of Smart Cruise Control.

For more details on the precautions of the front view camera and front radar, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.

Function operation

To set speed 1. Accelerate to the desired speed, which must be more than 20 mph (30 km/h). 2. Press the Driving Assist button at the desired speed...

Function settings

Setting [A] : Type A, [B] : Type B To turn on the function Press the Driving Assist button to turn on the system. The speed will be set to the current speed on the cluster...
