Components and components location

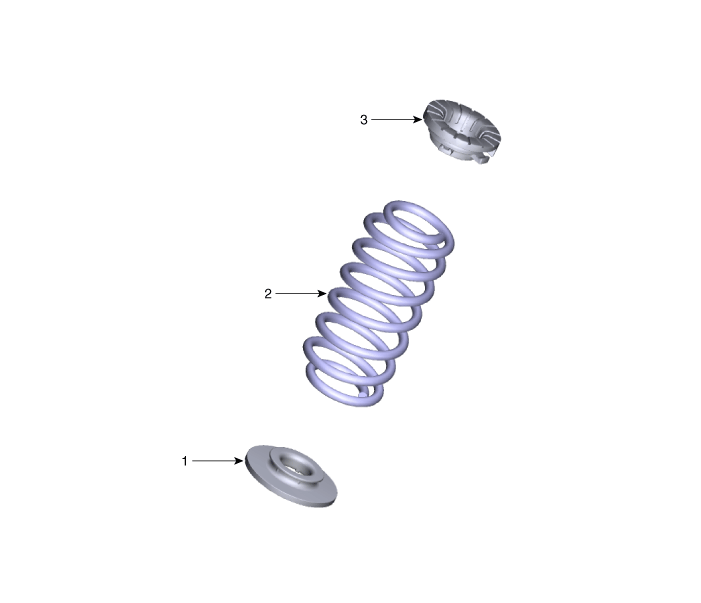

Components

1. Coil spring upper pad
2. Rear coil spring

3. Coil spring lower pad

Repair procedures

Removal

1.	Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

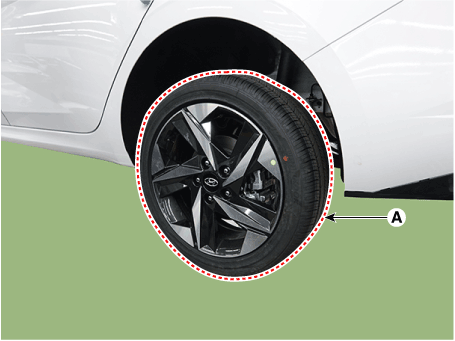

Remove the rear wheel and tire (A) from the rear hub.

Tightening torque :

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

•	Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

3.	Remove the rear caliper. (Refer to Brake System - "Rear Disc Brake")

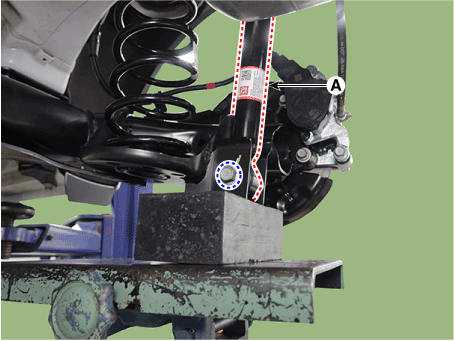

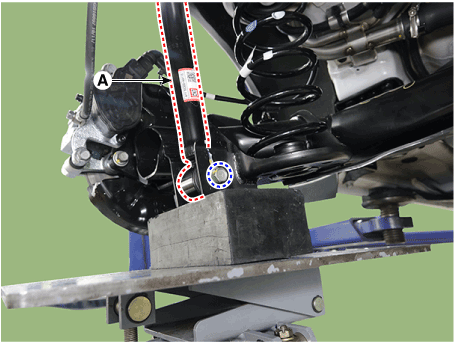

Remove the rear shock absorver (A) from the torsion beam axle after loosening the mounting bolt.

Tightening torque :

98.1 - 117.7N.m (10.0 - 12.0kgf.m, 72.3 - 86.8lb-ft)

•	Set up the jack under the torsion beam axle in order to remove it in no-load condition.

[LH]

[RH]

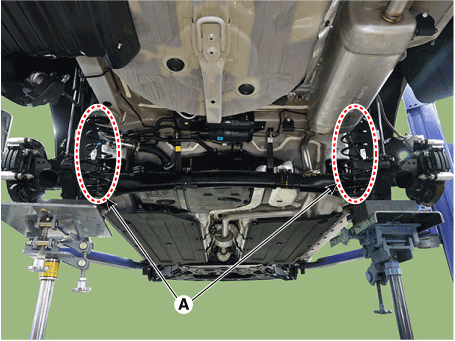

Remove the coil spring (A).

•	Left / right sides Remove all the same.

Installation

1.	To install, reverse the removal procedures.
