Hyundai Elantra: Power Door Mirrors / Power Door Mirror Assembly

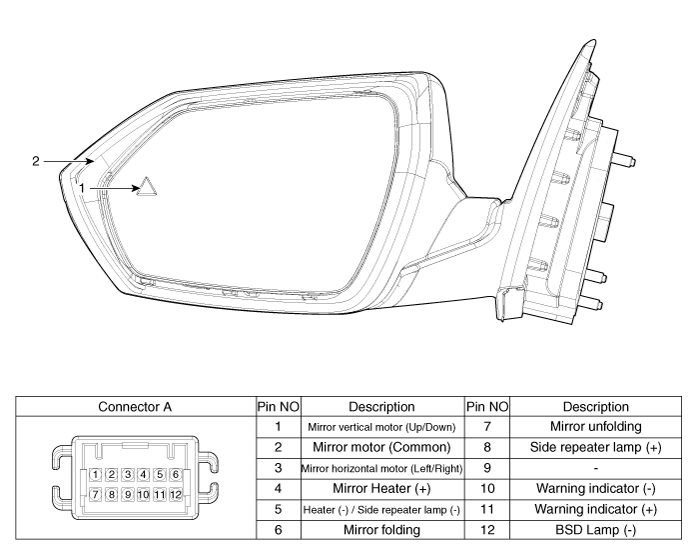

Components and components location

1. Warning indicator
| 2. Side repeater lamp
|
Repair procedures
1. | Disconnect the negative (-) battery terminal. |

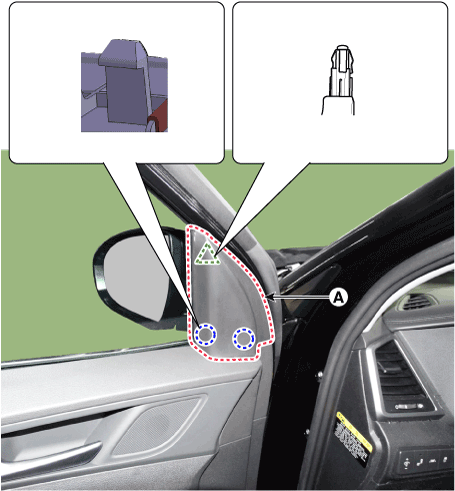

2. | Remove the front door quadrant inner cover (A).
|

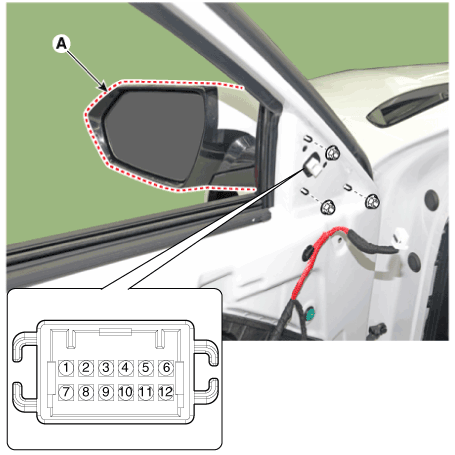

3. | Disconnect the power door mirror connector from the harness.
|

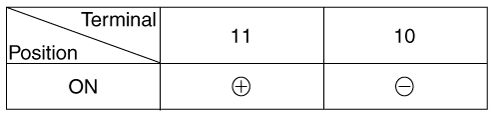

4. | Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly. [Mirror Control (LH/RT)]
[Warning indicator]
[Mirror Heater]

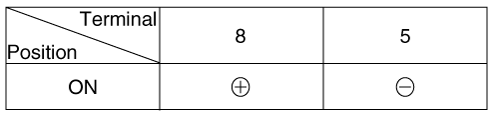

[Side Repeater Lamp]
[Mirror Fording Motor]
|
1. | Disconnect the negative (-) battery terminal. |
2. | Remove the front door trim. (Refer to Body - "Front door trim") |

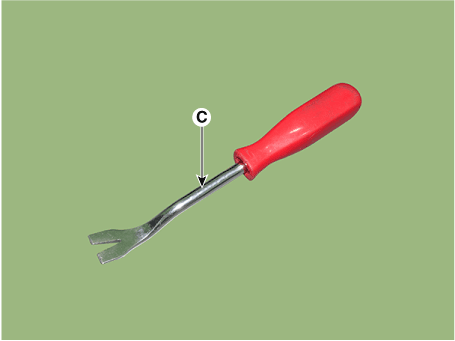

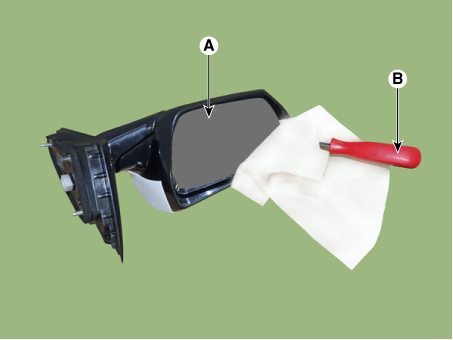

3. | Using a fastener remover (C), remove the mirror (A) as illustration below.

•
| Protect mirror from removing tool with cloth (B) wrapped. |
•
| Be careful not to damage mirror and mirror housing during removing process. |
•
| Apply force around the center of mirror because to apply force the end of mirror will break it. |
|
|
4. | Disconnect heat wire connectors (A) and then remove the mirror.
|

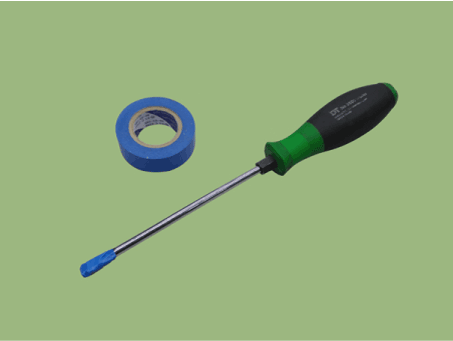

5. | Remove the scalp. (1) | Attach protection tape at the end of the screw driver.
|

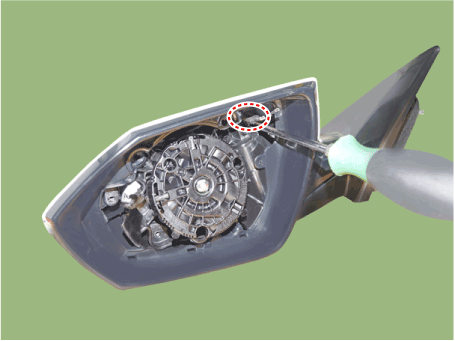

(2) | Insert screw driver in where you can see the back of scalp.
•
| When inserting screw driver, avoid to touch internal wires in the mirror housing. |
|
|

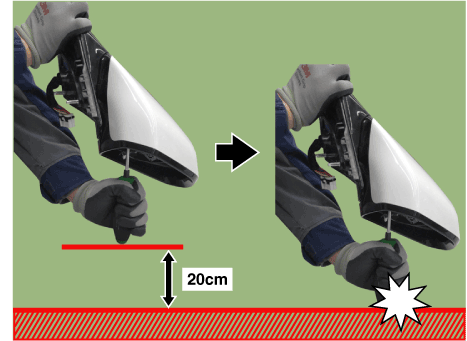

(3) | Hold the mirror assembly with one hand and hold the screwdriver with the other hand and strike it vertically as shown illustration below.
•
| It is the way that screw driver strikes inner side of scalp cover to remove. |
•
| Lift screw driver and door mirror assembly about 20cm height from floor then smash them vertically. |
•
| Scalp is thrown and removed because screw driver push the back of scalp cover to remove. |
•

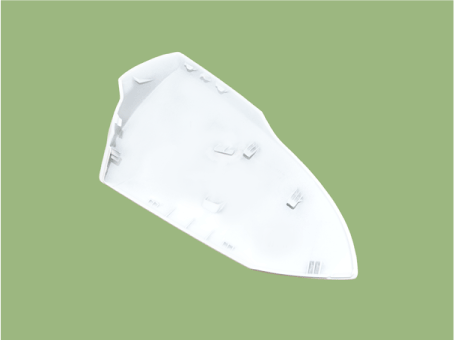

| After removing the scalp, make sure that the clip and hook on the back of the scalp are not damaged. |
•
| If clips and hooks are damaged, replace the scalp with a new one as noise may occur in driving.
|
|
|
|

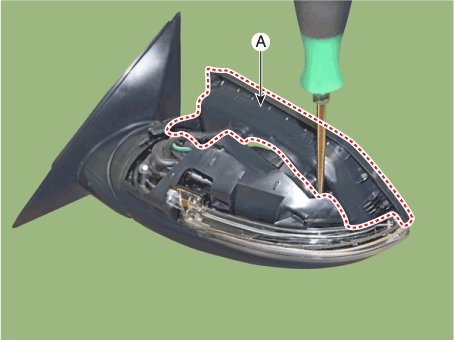

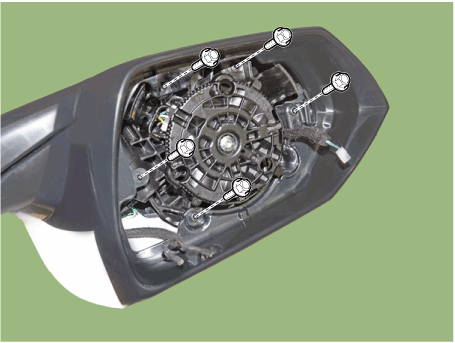

6. | Remove the fornt housing cover after loosening mounting screws.

|

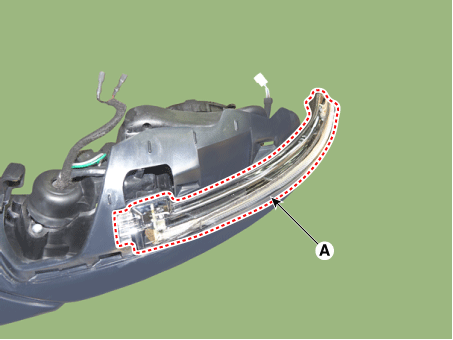

7. | Using a fastener remover, remove the LED side repeater lamp (A) as illustration below.
|

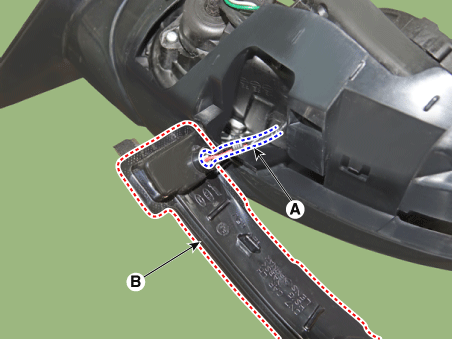

8. | Disconnect the connector (A) and then remove the LED side repeater lamp (B).
|
1. | Install the side repeater lamp. |
2. | Install the front housing cover. •
| When front housing cover installing, install the folded area first and then the far area. |
•
| Pushing the around of front housing cover with both hands and then make sure that it is completely installed. |
|
|
3. | Install the scalp. •
| Install the scalp in the vertical direction that the inner fixing hook is not damaged. |
•
| When scalp installing, install the folded area first and then the far area. |
•
| Pushing the around of scalp with both hands and then make sure that it is completely installed. |
|
|
4. | Connect mirror wire connectors. |
5. | Install the door mirror assembly. |
6. | Connect (-) battery terminal then check if door mirror lamp works normally. |
