Hyundai Elantra: Door Locks / Operating Door Locks from Inside the Vehicle

Hyundai Elantra (CN7) 2021-2024 Owner's Manual / Convenient Features / Door Locks / Operating Door Locks from Inside the Vehicle

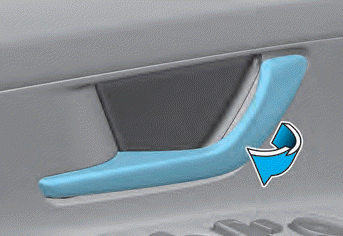

With the door handle

Front door

If the inner door handle is pulled when the door is locked, the door will unlock and open.

Rear door

If the inner door handle is pulled once when the door is locked, the door will unlock. If the inner door handle is pulled once more, the door will open.

Information

If a power door lock ever fails to function while you are in the vehicle try one or more of the following techniques to exit:

  • Operate the door unlock feature repeatedly (both electronic and manual) while simultaneously pulling on the door handle.
  • Operate the other door locks and handles, front and rear.
  • Lower a front window and use the mechanical key to unlock the door from outside.

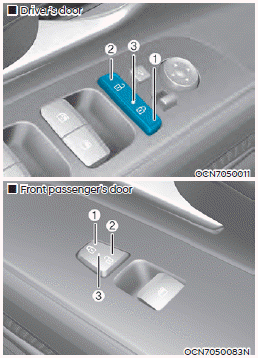

With the central door lock switch

  • When pressing the ( ) portion (1) of the switch, all vehicle doors will lock.
    -- If the key is in the ignition switch and any door is opened, the doors will not lock even though the lock button (1) of the central door lock switch is pressed.
    -- If the smart key is in the vehicle and any door is opened, the doors will not lock even though the lock button (1) of the central door lock switch is pressed.
  • When pressing the ( ) portion (2) of the switch, all vehicle doors will unlock.
  • Doors indicating light (3) When all vehicle doors are locked, the indicating lights on the driver’s door and passenger’s door will turn on. If any door is unlocked, it would go off.

WARNING

  • The doors should always be fully closed and locked while the vehicle is in motion. If the doors are unlocked, the risk of being thrown from the vehicle in a crash is increased.
  • Do not pull the inner door handle of the driver’s or passenger’s door while the vehicle is moving.

WARNING

Do not leave children or animals unattended in your vehicle. An enclosed vehicle can become extremely hot, causing death or serious injury to unattended children or animals who cannot escape the vehicle.

Children might operate features of the vehicle that could injure them, or they could encounter other harm, possibly from someone gaining entry to the vehicle.

WARNING

Always secure your vehicle.

Leaving your vehicle unlocked increases the potential risk to you or others from someone hiding in your vehicle.

To secure your vehicle, while depressing the brake, move the shift button to the P (Park) position, engage the parking brake, and place the ignition switch in the LOCK/OFF position, close all windows, lock all doors, and always take the key with you.

WARNING

If you stay in the vehicle for a long time while the weather is very hot or cold, there are risks of injuries or danger to life. Do not lock the vehicle from the outside when someone is in the vehicle.

WARNING

Opening a door when something is approaching may cause damage or injury. Be careful when opening doors and watch for vehicles, motorcycles, bicycles or pedestrians approaching the vehicle in the path of the door.

    Operating Door Locks from Outside the Vehicle

    Mechanical key 1. Press the lever located under the cover with mechanical key. (1) 2. While pushing the lever so that the mechanical key does not fall out of the cover hole, slowly push it towards the rear of the vehicle and remove the cover...

    Automatic Door Lock and Unlock Features

    Impact sensing door unlock system All doors will be automatically unlocked when an impact causes the air bags to deploy. You can activate or deactivate the Auto Door Lock/Unlock features from the User Settings Mode on the LCD display...
