Hyundai Elantra: Lubrication System / Oil Pressure Control Solenoid Valve

Repair procedures
Removal and Installation
1.
Disconnect the battery negative terminal.
2.

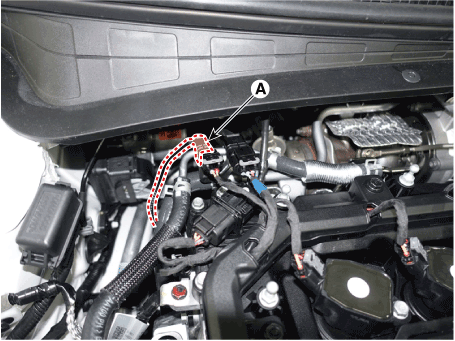

Disconnect the oil pressure control solenoid valve connector (A).

3.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly System - "Engine Room Under Cover")
4.

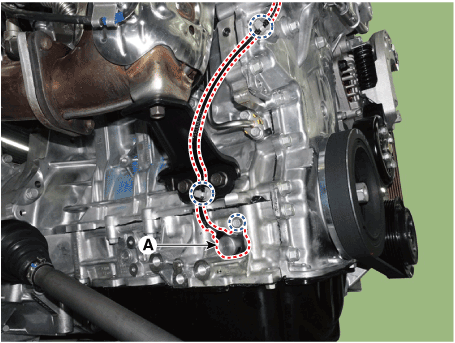

Remove the oil pressure control solenoid valve (A) after loosening the bolt and disconnecting the wiring fastener.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)


When installing, apply engine oil to the O-ring.
5.
Install in the reverse order of removal.
