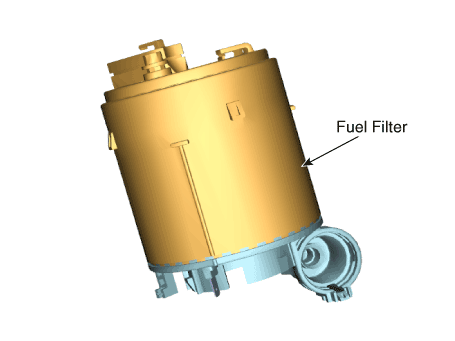

Hyundai Elantra: Fuel Delivery System / Fuel Filter

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Filter

Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.

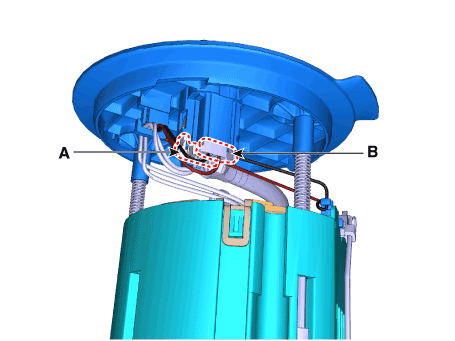

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

3.

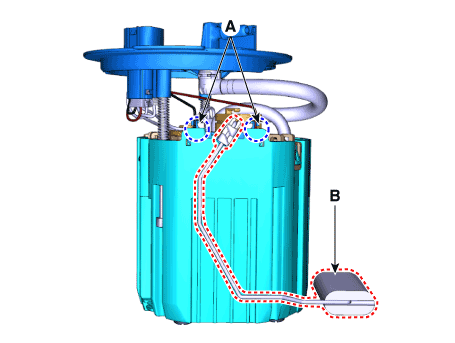

Release the fixing hook (A) and then remove the fuel sender (B).

4.

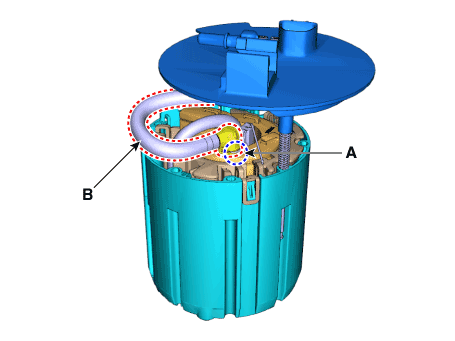

Remove the fixing clip (A) and then disconnect the fuel feed tube (B).

5.
Remove the fixing clip (A) and then remove the head assembly (B).

6.

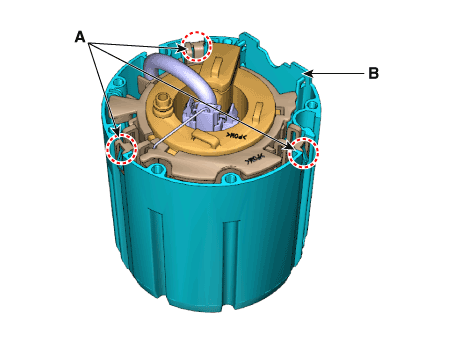

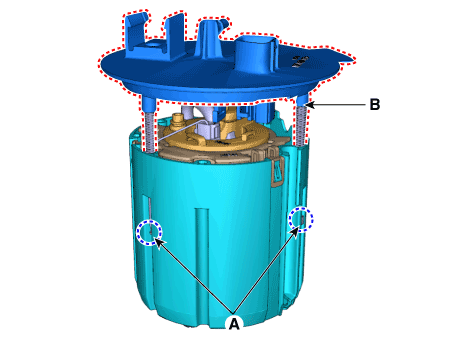

Release the fixing hook (A) and then remove the reservoir-cup (B).

7.
Disconnect the fuel pump motor connector (A).
8.
Disconnect the ground cable (B).

9.

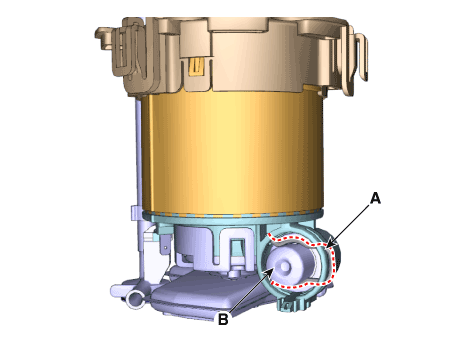

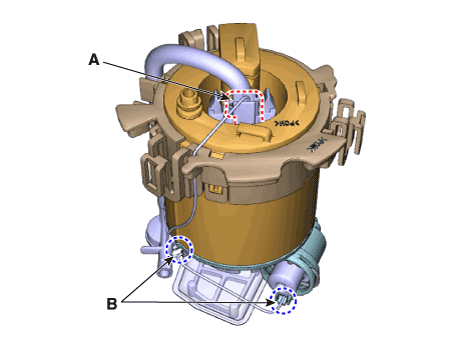

Remove the fixing clip (A) and then disconnect the fuel pressure regulator (B).

10.

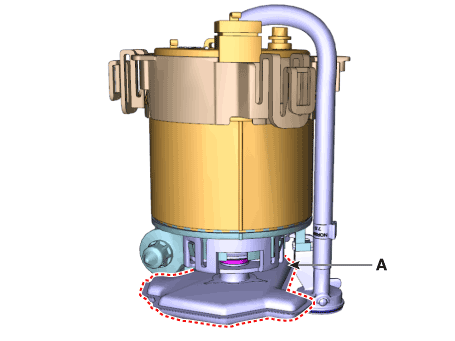

Release the fixing hook and then remove the free filter (A).

11.

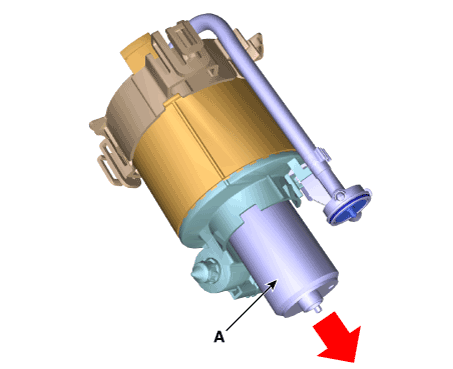

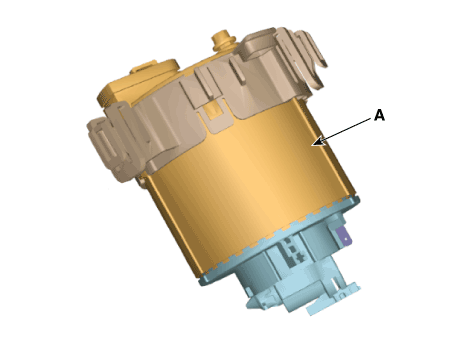

Remove the fuel pump motor (A) from the fuel filter.

12.
Release the fixing hook and then remove the fuel filter (A) from the bracket.

Installation
1.
Install in the reverse order of removal.
