Repair procedures

Replacement

1.	Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley")

2.	Remove the front oil seal (A).

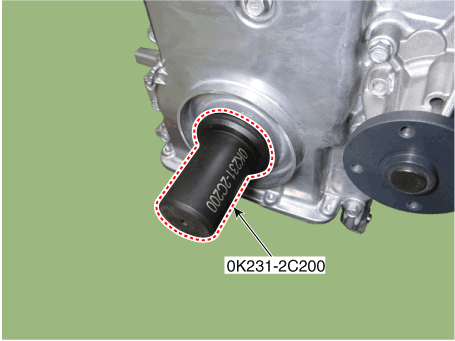

Using the SST (0K231-2C200), install a new front oil seal.

•	Always use a new front oil seal.

4.	Install in the reverse order of removal.
