Hyundai Elantra: Engine And Transaxle Assembly / Engine Room Under Cover
Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Room Under Cover
Repair procedures
| Removal and Installation |

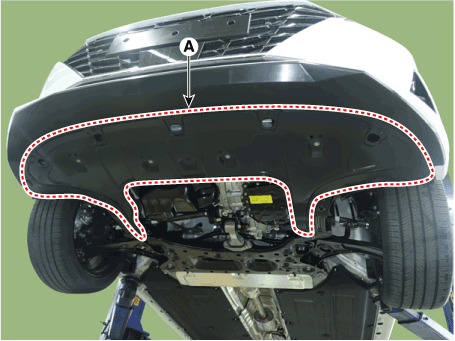

| 1. | Remove the engine room under cover (A).
|
| 2. | Installation is reverse order of removal. |
