Hyundai Elantra: Front View Camera System / Components and components location
Hyundai Elantra (CN7) 2021-2024 Service Manual / Advanced Driver Assistance System (ADAS) / Front View Camera System / Components and components location

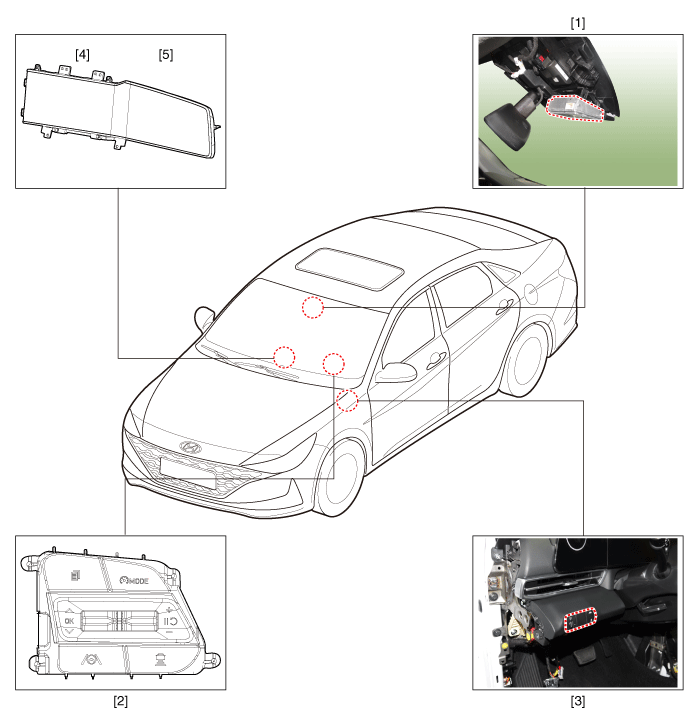

| Components Location |
| 1. Front view camera (FR_CMR) 2. LKA ON/OFF switch (Remote control switch) 3. LKA ON/OFF switch | 4. Cluster 5. AVN head unit |
Description and operation
Description and OperationBlcok Diagram
•
This system monitors the driving situations through the radar and the camera...
Repair procedures
Variant Coding
When you need variant coding:–
Replace Front View Camera with a new one※ EOL Variant Coding and calibration required for new replacementFront View Camera Variant CodingFront view camera variant coding makes it possible to operate functions for each vehicle type...
