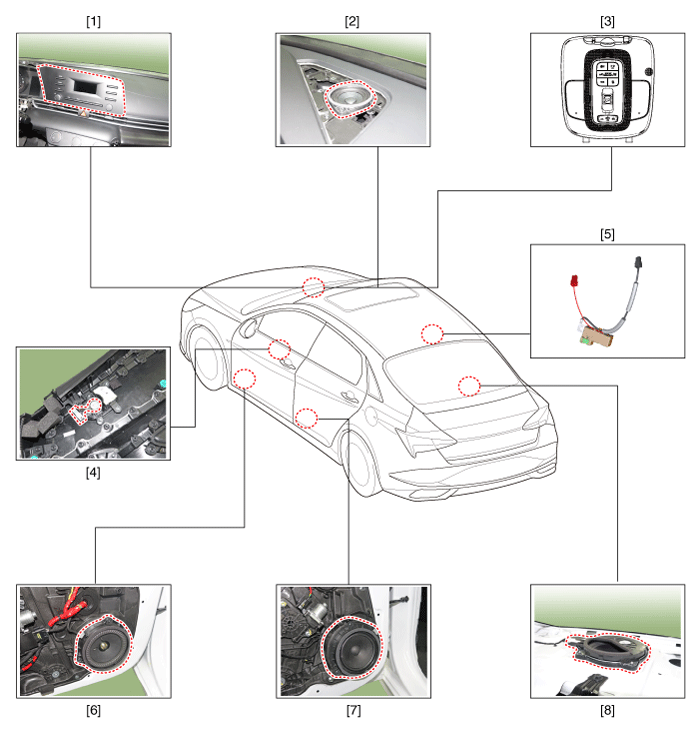

Component Location

1. Audio unit
2. Center speaker
3. Hands-free mic (Built-in overhead console)
4. Tweeter speaker
5. Glass antenna amplifier
6. Front door speaker
7. Rear door speaker
8. Woofer speaker

    SpecificationsAudio Items AUDIO ModelRADIO/MP3Power supplyDC 14.4VParasitic currentMax 21W X 4Antenna80PF 75ΩTuning typePLL SYNTHESIZED TUNING
