Components

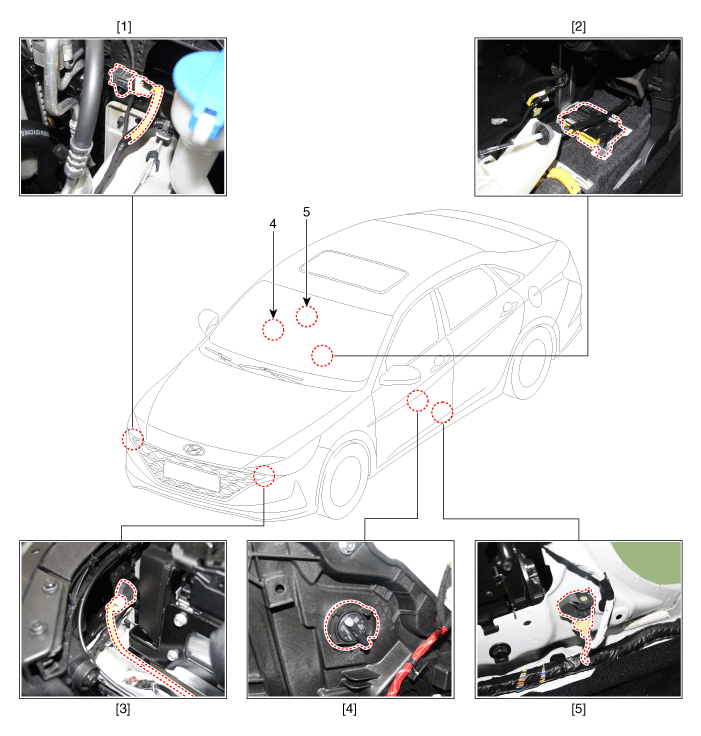

1. Front impact sensor (FIS)
2. Supplemental Restraint System Control Module (SRSCM)
3. Front impact sensor (FIS)

4. Gravity side Impact Sensor (G-SIS)
5. Pressure Side Impact Sensor (P-SIS)

SRS Control Module (SRSCM)

Description and operation Description• Supplemental Restraint System Control Module (SRSCM) determines whether and when to deploy air bag module, seat belt pretensioner (BPT)...
