Hyundai Elantra: Automatic Climate Control System / Automatic heating and air
conditioning
.png)
1. Press the AUTO button
The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically according to the
temperature setting you select.
.png)
You can control the blower strength in
three stages by pushing the AUTO button
during automatic operation.
-- HIGH : Provide rapid air conditioning
and heating with strong blower
-- MEDIUM : Provide air conditioning
and heating with medium strength
blower
-- LOW : It is suitable for drivers who
prefer to soft blower.
When you select the temperature to HI
or LO in AUTO mode, the wind strength is
set to ‘HIGH’.
.png)
2. Turn the temperature control knob
to set the desired temperature. If
the temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
- To turn the automatic operation off,
select any button of the following:
-- Mode selection button
-- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
screen once again.)
-- Fan speed control toggle switch
The selected function will be
controlled manually while other
functions operate automatically.
- For your convenience and overall
system efficiency, use the AUTO
button and set the temperature to
22°C (72°F).
.png)
Information

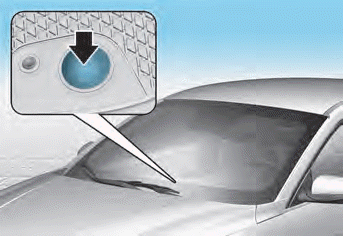

Never place anything near the sensor to
ensure better control of the heating and
cooling system.
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. SYNC button
5. OFF button
6...
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected...
